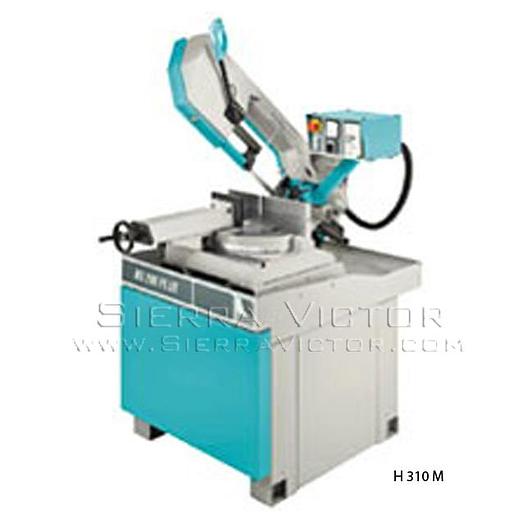

KMT SAW AutoCut Mitering Band Saws H 310 M

KMT SAW AutoCut Mitering Band Saws H 310 M
Contact us for price
Description
Please note: many products ship straight from manufacturer KMT SAW 10" AutoCut Mitering Band Saws H310M
- The H310 M is a gravity feed autocut bandsaw capable of mitering 45 to the left and 60 degrees to the right.
- The cycle start button is located in the trigger switch for safety.
- The blade will turn off at the end of the cut. The solenoid will hold the saw frame where lifted. The Autocut will insure that each cut is feed exactly at the same rate, eliminating the need to open and close the valve each cut.
- The vise is mounted in a t slot with a quick release handle it can be moved from either side of the cut.
- Easy operator controls
- Large easy to read scale ensures accurate miters
- Carbide guides w/ rollers
- Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
STANDARD EQUIPMENT:
- One Bi-metal saw blade
- Low voltage control
- TEFC 3 phase drive motor
- Totally enclosed worm gear transmission
- Full Coolant System
- Full Blade Guarding
- Operators Manual Parts List/Schematics
- Tool kit
OPTIONAL ITEMS: CALL FOR PRICE
- AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
- AC250 5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together)
- AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
- AC103: Additional 6' connecting to AC102
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
Manufacturer | KMT Saw |
Model | H310M |
Condition | New |
Stock Number | H 310 M |
Capacity - Round: 0 deg. | 10" |
Capacity - Square: 0 deg. | 9-1/2" |
Capacity - Rectangle: 0 deg. | 7" x 11" |
Capacity - Round: 45 deg. right | 8-1/4" |
Capacity - Square: 45 deg. right | 7-1/2" |
Capacity - Rectangle: 45 deg. right | 6-1/4" x 7-3/4" |
Capacity - Round: 45 deg. left | 17" |
Capacity - Square: 45 deg. left | 6-1/4" |
Capacity - Rectangle: 45 deg. left | 3-3/4" x 7" |
Capacity - Round: 60 deg. right | 5-1/4" |
Capacity - Square: 60 deg. right | 4-1/4" |
Capacity - Rectangle: 60 deg. right | 3-3/4" x 5" |
Blade Drive HP | 2 |
Available Electrics | 230/3, 220/1 or 460/3 (please specify) |
Blade Size | H 1" x s .035" x L 9' 1" |
Material Working Height (from floor to table top) | 37" |
Vise Opening | 12" |
Machine Weight | 850 lbs. |
Machine Dimensions | W 38" x L 66" |
