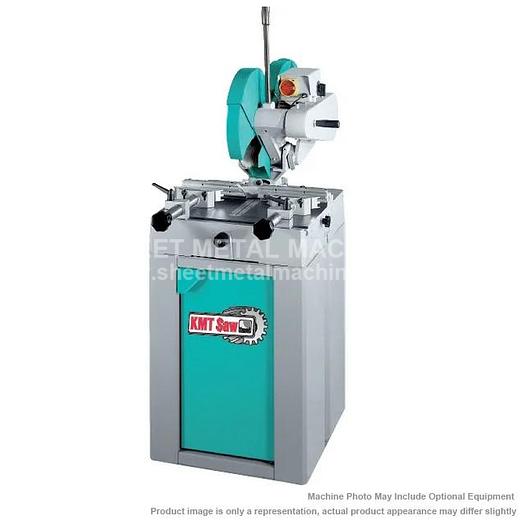

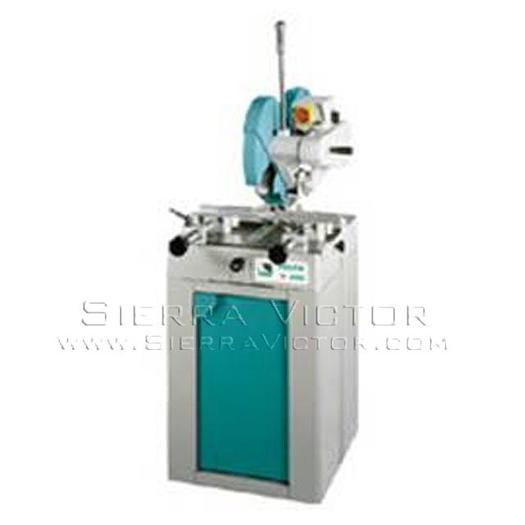

KMT SAW Manual High Speed Circular Saw CT 350 AV

KMT SAW Manual High Speed Circular Saw CT 350 AV
Contact us for price
Description
Please note: many products ship straight from manufacturer KMT SAW 14" Manual High Speed Circular Saw CT 350 AV
- The CT 350 Series Machines are high speed circular saws for aluminum extrusions and other non-ferrous materials. These machines feature swiveling capability for mitering and swiveling/tilting capability for compound mitering.
- Model CT 350 AV - Manual sawing operation with two quick clamping air vises.
- Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
STANDARD EQUIPMENT:
- One Carbide tipped saw blade
- Low voltage control
- TEFC 3 phase drive motor
- Spray Mist Coolant System
- Full Blade Guarding
- Operators Manual Parts List/Schematics
- Tool kit
OPTIONAL ITEMS: CALL FOR PRICE
- AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
- AC250: 5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together)
- AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
- AC103: Additional 6' connecting to AC102
- AC121: Top Clamp
*Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
Manufacturer | KMT Saw |
Model | CT350AV |
Condition | New |
Stock Number | CT 350 AV |
Capacity - Round 0° | 4.5" |
Capacity - Square 0° | 4" |
Capacity - Rectangle 0° | 3" x 7.75" |
Capacity - Round 45° right | 4.5" |
Capacity - Square 45° right | 4" |
Capacity - Rectangle 45° right | 3" x 5.75" |
Capacity - Round 45° left | 4.5" |
Capacity - Square 45° left | 4" |
Capacity - Rectangle 45° left | 3" x 5.75" |
Capacity - Round 45° vert. left | 2.5" |
Capacity - Square 45° vert. left | 2.25" |
Capacity - Rectangle 45° vert. left | 2" x 7" |
Max Vise Opening | 8" |
Machine Dimensions | 32" W x 36" L |
