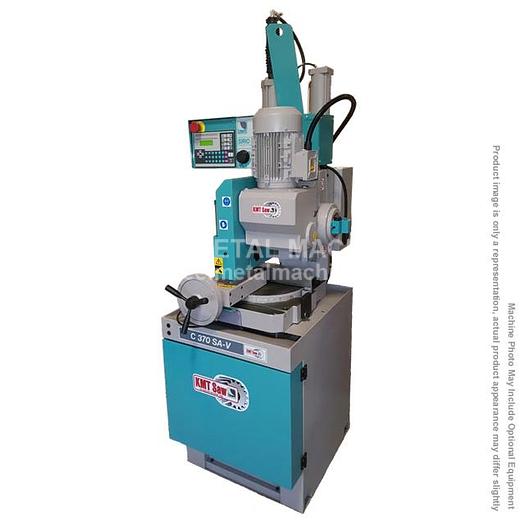

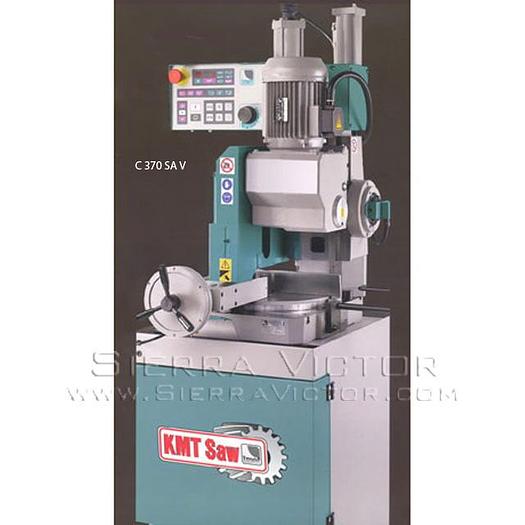

KMT SAW Vertical Column Semi-Auto Cold Saw: C 370 SA

KMT SAW Vertical Column Semi-Auto Cold Saw: C 370 SA

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer KMT SAW 14.5" Vertical Column Semi-Auto Cold Saw C370SA

  • Vertical column machines provide the construction that is the most stable of all cold saws. This means superior saw frame guidance and vibration-free sawing, and greater accuracy throughout the entire life of the machine.
  • The saw frame is quickly and accurately swiveled to any angle up to 45 degrees left or 60 degrees right, with a highly visible scale for optimum accurately returning to zero.
  • The saw frame feed is rack & pinion.
  • C 370 series machines may be used to cut solid mild steel to the maximum capacity.
  • Semiautomatic operation with added features: variable speed 13-89rmp, variable vise pressure, electronic depth setting.
  • Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.


STANDARD EQUIPMENT:

  • One HSS saw blade
  • Low voltage control
  • TEFC 3 phase drive motor
  • Totally enclosed worm gear transmission
  • Full Coolant System
  • Full Blade Guarding
  • Operators Manual Parts List/Schematics
  • Tool kit
  • Pull out chip tray


OPTIONAL ITEMS: CALL FOR PRICE

  • AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
  • AC250: 5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together)
  • AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
  • AC103: Additional 6' connecting to AC102
  • AC117: Footswitch
  • AC116: Spray mist coolant
  • AC128: Top clamp
  • AC330: Variable vise pressure


*Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerKMT Saw
ModelC370SA
ConditionNew
Stock NumberC 370 SA
Capacity - Round 0°4-1/2"
Capacity - Square 0°4"
Capacity - Rectangle 0°4" x 7"
Capacity - Round 45° left4-1/2"
Capacity - Square 45° left4"
Capacity - Rectangle 45° left4" x 5"
Capacity - Round 45° right4"
Capacity - Square 45° right4"
Capacity - Rectangle 45° right4" x 5"
Capacity - Round 60° right4-1/4"
Capacity - Square 60° right3-3/4"
Capacity - Rectangle 60° right3-1/2" x 3-1/2"
