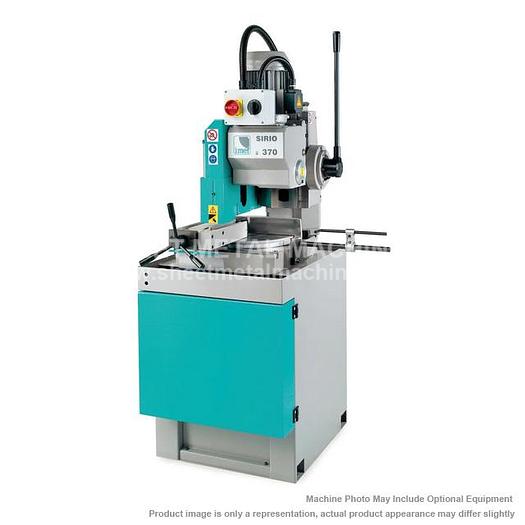

KMT SAW Vertical Column Manual Cold Saw C370

KMT SAW Vertical Column Manual Cold Saw C370

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer KMT SAW 14" Vertical Column Manual Cold Saw C370

  • Vertical column machines provide the construction that is the most stable of all cold saws. This means superior saw frame guidance and vibration-free sawing, and greater accuracy throughout the entire life of the machine.
  • The saw frame is quickly and accurately swiveled to any angle up to 45 degrees left or 60 degrees right, with a highly visible scale for optimum accurately returning to zero.
  • The saw frame feed is rack & pinion which means you can easily pull through heavy workpieces effortlessly.
  • C 370 series machines may be used to cut solid mild steel to the maximum capacity.
  • C 370 with manual vise
  • C 370 AV with air vise
  • Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day


STANDARD EQUIPMENT:

  • One HSS saw blade
  • Low voltage control
  • TEFC 3 phase drive motor
  • Totally enclosed worm gear transmission
  • Full Coolant System
  • Full Blade Guarding
  • Operators Manual Parts List/Schematics
  • Tool kit
  • Pull out chip tray


OPTIONAL ITEMS: CALL FOR PRICE

  • C 370 AV: Manual Cold Saw - Manual sawing operation with quick clamping of air vise.
  • AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
  • AC250: 5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together)
  • AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
  • AC103: Additional 6' connecting to AC102


Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerKMT Saw
ModelC370
ConditionNew
Stock NumberC370
Capacities - Round: 0 deg.4-1/2"
Capacities - Square: 0 deg.4"
Capacities - Rectangular: 0 deg.4" x 7"
Capacities - Round: 45 deg. left4-1/2"
Capacities - Square: 45 deg. left4"
Capacities - Rectangular: 45 deg. left4" x 5"
Capacities - Round: 45 deg. right4"
Capacities - Square: 45 deg. right4"
Capacities - Rectangular: 45 deg. right4" x 5"
Capacities - Round: 60 deg. right4-1/4"
Capacities - Square: 60 deg. right3-3/4"
Capacities - Rectangular: 60 deg. right3-1/2" x 3-1/2"
Spindle RPM18/36 (13-89, C 370-AV)
