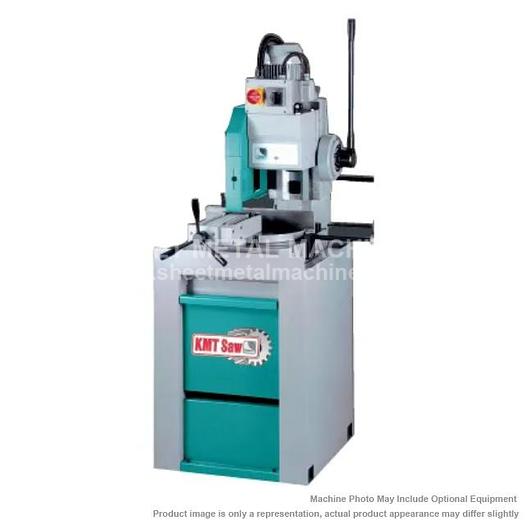

KMT SAW Vertical Column Manual Cold Saw C316

KMT SAW Vertical Column Manual Cold Saw C316

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer KMT SAW 12.5" Vertical Column Manual Cold Saw C316

  • Vertical column machines provide the construction that is the most stable of all cold saws. This means superior saw frame guidance and vibration-free sawing, and greater accuracy throughout the entire life of the machine.
  • The saw frame is quickly and accurately swiveled to any angle up to 45 degrees left or 60 degrees right, with a highly visible scale for optimum accurately returning to zero.
  • The saw frame feed is rack & pinion which means you can easily pull through heavy workpieces effortlessly.
  • Models C 316 is a step up from hinge type construction and may be used for production of tubes profiles and small solids.
  • C 316 with manual vise
  • C 316 AV SA with air vise
  • Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.


STANDARD EQUIPMENT:

  • One HSS sawblade
  • Low voltage control
  • TEFC 3 phase drive motor
  • Totally enclosed worm gear transmission
  • Full Coolant System
  • Full Blade Guarding
  • Operators Manual Parts List/Schematics
  • Tool kit
  • Pull out chip tray


OPTIONAL ITEMS: CALL FOR PRICE

  • AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
  • AC250: 5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together)
  • AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
  • AC103: Additional 6' connecting to AC102


*Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerKMT Saw
ModelC316
ConditionNew
Stock NumberC316
Capacity - Round: 0 deg.4"
Capacity - Square: 0 deg.3-1/2"
Capacity - Rectrangular: 0 deg.3-1/2" x 5-3/4"
Capacity - Round: 45 deg. left4"
Capacity - Square: 45 deg. left3-1/2"
Capacity - Rectangular: 45 deg. left3" x 4"
Capacity - Round: 45 deg. right4"
Capacity - Round: 45 deg. right3-1/2"
Capacity - Rectangular: 45 deg. right3" x 4"
Capacity - Round: 60 deg. right3-1/2"
Capacity - Square: 60 deg. right3"
Capacity - Rectangular: 60 deg. right2-3/4" x 3-1/2"
Spindle RPM17/33
