KMT SAW Manual Cold Saw C315/350

KMT SAW Manual Cold Saw C315/350

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

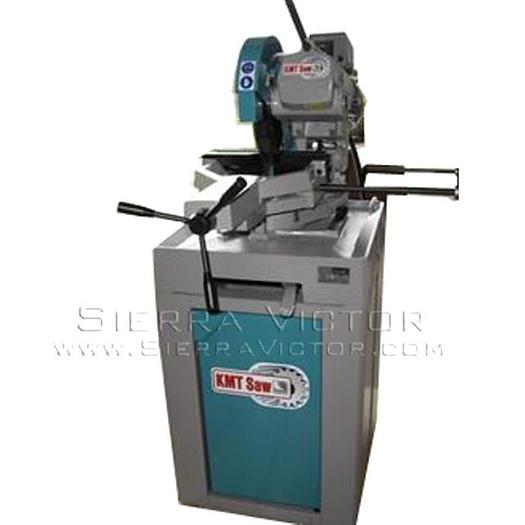

KMT SAW 14" Manual Cold Saw C315/350

  • For tubes, pipes, light structurals. Hinge type machines are generally not considered production machines, but may be used in production under carefully considered applications.
  • Takes up to 14" blade
  • Miters up to 45 degrees right and left vise also swivels for slotting capability
  • Built in flood coolant
  • Material stop
  • Storage base included
  • Equal clamping on both sides of vise
  • One 12" saw blade included
  • Tool kit
  • *Variable speed option (24-105rpm)
  • Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.


STANDARD EQUIPMENT:

  • One HSS sawblade
  • Low voltage control
  • TEFC 3 phase drive motor
  • Totally enclosed worm gear transmission
  • Full Coolant System
  • Full Blade Guarding
  • Operators Manual Parts List/Schematics


OPTIONAL ITEMS: CALL FOR PRICE

AC230: Mobile Kit

AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)

AC250: 5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together)

AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray

AC103: Additional 6' connecting to AC102


Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerKMT Saw
ModelC315/350
ConditionNew
Stock NumberC315/350
Construction TypeHinge Type
Capacities - Round: 90 deg.4"
Capacities - Square: 90 deg.3-3/4"
Capacities - Rectangular: 90 deg.3-3/4" x 5"
Capacities - Round: 45 deg. left3-3/4"
Capacities - Square: 45 deg. left3-3/4"
Capacities - Rectangular: 45 deg. left3-3/4" x 3-3/4"
Capacities - Round: 45 deg. right3-3/4"
Capacities - Square: 45 deg. right3-3/4"
Capacities - Rectangular: 45 deg. right3-3/4" x 3-3/4"
Spindle RPM 24-105 (220/1 optional); 30/60
Electricals 220/3, 460/3 (*220/1 variable speed machine only - Additional charge)
Spindle Diameter32mm
Max Vise Opening6-1/4"
Floor Footprint23" w x 24" deep
Material Work Height39.75"
Shipping Weight650 lbs.
