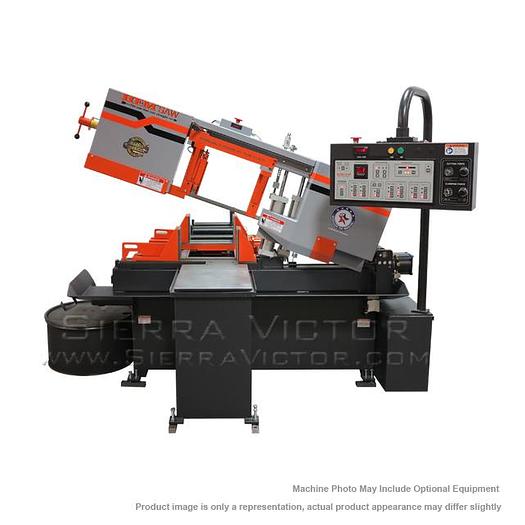

HE&M Horizontal Pivot Bandsaw H90A-4

HE&M Horizontal Pivot Bandsaw H90A-4

Contact us for price

orCall 386-304-3720


Please note: many products ship straight from manufacturer HE&M 12.75 inch Horizontal Pivot Bandsaw H90A-4 MADE IN USA! The H90A-4 offers up to 4 indexes 24” each and will cut up to 999 same-length parts. The H90A-4 gives fast accurate cuts on small solids and shapes. It is perfect for cutting multiple parts of the same length that are shorter or longer than 24”.

  • Easy View Console - All Function Control
  • 24" Solid Discharge Table - Bolts to Saw
  • Vise - Adjustable Main & Feed
  • Adjustable Clamping Force
  • 2 Hold Down Fixtures
  • Guide Arm - Manual Adjustment
  • Passive "Cut Watcher" System
  • Variable Blade Speed w/ LED Readout
  • Carbide Blade Guides
  • Manual Blade Tension
  • Adjustable Feed Rate
  • Adjustable Cutting Pressure
  • Coolant System - Flood w/ Wash-Down Hose
  • Blade Brush
  • Vertical Alignment Bar on Bar-Feed
  • Broken Blade Function
  • Out-of-Stock Function
  • Safety Guards
  • 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
  • 85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator)


  • Vise - 3rd on Feed
  • Interlocking Vise Jaws
  • Top Clamp - Reduced Capacity Main Vise
  • Top Clamp - Reduced Capacity Feed Vise
  • Light Clamping Pressure
  • Spray Mist Lubrication
  • 5' Idle Roller Stock Table
  • 10' Idle Roller Stock Table
  • Single-Phase Voltage

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



Stock NumberH90A-4
Capacity - Rectangular0-12.75" W x 0-12.75" H
Capacity - Square0-12" (Square)
Capacity - Round0-12.75" (Diameter)
Hydraulic MotorN/A
Minimum Air Requirement85 PSI, 4-6 CFM (Equipped w/ Air Filter/Lubricator)
Operation TypeAutomatic
Power SourceAir
Blade TypeBandsaw
Blade Size12' 10" L x 1" H x .035"
Bandsaw Blade SpeedN/A
Bundle Cut?Yes
