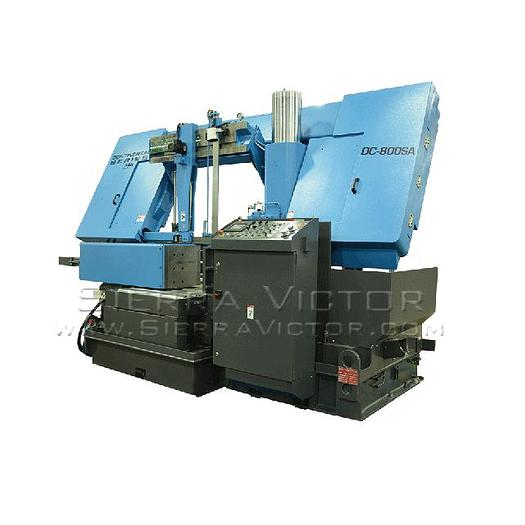

DOALL Semi-Automatic Bandsaw DC-800SA

DOALL Semi-Automatic Bandsaw DC-800SA
Contact us for price
Description
Please note: many products ship straight from manufacturer DOALL Semi-Automatic Bandsaw DC-800SA ITEM: 31.5" Semi-Automatic Bandsaw MANUFACTURER: DoALL MODEL: DC-800SA The DC-800SA Semi-Automatic Continental Series high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL semi-automatic saws is the perfect choice. Once you have set your desired feed rate, blade speed and initial vise opening, a cut is complete, the band shuts off and the head returns to the upright open position and locks. Then the operator must manually reposition the material for another cut. STANDARD EQUIPMENT: Programmable Logic Controller (PLC) control for all electric and hydraulic functions Multi-step full stroke vises with split front vise and variable vise pressure control Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers Power driven, coolant flushed, blade cleaning wire brush Flushing hose and auxiliary coolant nozzles Hydraulic blade tension Automatic chip conveyor Blade breakage/stall motion detector shut off switch Band door interlocks Work light One set of 6-foot (2-meter) roller stands Set up tools and tool box Complimentary DoALL Cutting Fluids package One DoALL bi-metal saw blade Instruction and parts manuals on CD or USB data stick Additional 10 foot (3m) conveyor Magnetic chip remover
Specifications
Manufacturer | DoALL |
Model | DC-800SA |
Condition | New |
Stock Number | DC-800SA |
Rectangle: (W x H) | 39.3 x 31.5" (1000x800mm) |
Band Saw Blade (L x W x Gage) | 344" x 2-5/8" x 0.063" (8800x67x1.6 mm) |
Band Speed | 85-279 FPM (16 – 85 m/min) |
Band Drive | 15 hp (11.1kW) |
Hydraulic Pump | 3 hp (2.2kW) |
Hydraulic Tank Capacity | 22.5 gal (85 L) |
Coolant Pump | 1/4 hp (0.2 kw) |
Coolant Tank Capacity | 58 gal (220 L) |
Material Pass Line Height | 28.3" (720 mm) |
Dimensions (W x L x H) | 171.3" x 85" x 104.3" (4350x2160x2650 mm) |
Machine Weight | 24,251 lbs (11,000 kg) |
