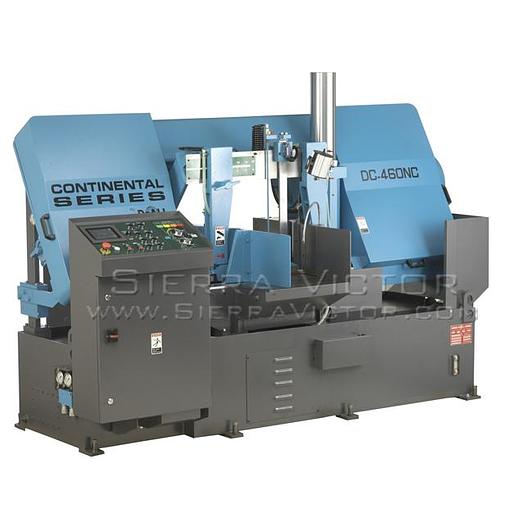

DOALL Production Bandsaw DC-460NC

DOALL Production Bandsaw DC-460NC
Contact us for price
Description
Please note: many products ship straight from manufacturer DOALL Production Bandsaw DC-460NC ITEM: 18" Production Bandsaw MANUFACTURER: DoALL MODEL: DC-460NC The DC-460NC Continental Series of high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. They offer automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life. STANDARD EQUIPMENT: PLC control for all electric and hydraulic functions Infinitely variable speed controlled by VFD Hydraulic retractable shuttle vise material indexer Rapid and creep speed index vise control Multi-step full stroke vises with split front vise and variable vise pressure control Nesting fixture for bundle cutting Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers Power driven, coolant flushed, blade cleaning wire brush Flushing hose and auxiliary coolant nozzles Hydraulic blade tension Automatic chip conveyor Blade breakage/stall motion detector shut off switch Band door interlocks Work light One 6-1/2 ft. (2M) conveyor Set up tools and tool box Complimentary DoALL Cutting Fluids package Instruction and parts manuals on CD or USB data stick One DoALL bi-metal saw blade Additional 6-1/2 ft. (2M) Conveyor
Specifications
Manufacturer | DoALL |
Model | DC-460NC |
Condition | New |
Stock Number | DC-460NC |
Rectangle: (W x H) | 20" W x 18" H (510mm x 460mm) |
Minimum: (W x H) | 9.38 x 3-1/4" (240x80mm) |
Band Saw Blade (L x W x Gage) | 209" x 1-1/2" x 0.05" (5300x41x1.3mm) |
Band Speed | 52-275 fpm (16-85mpm) |
Band Drive Motor | 10 hp (7.5kW) |
Hydraulic Pump | 2 HP (1.5 kW) |
Hydraulic Tank Capacity | 22 Gal. (85 Liters) |
Coolant Pump | 1/4 hp (0.2kW) |
Coolant Tank Capacity | 29 Gal. (110 Liters) |
Multiple | 177.16" (4500mm) |
Material Pass Line Height | 29-1/2" |
Floor Space Required | 102" x 89" x 71" (2580x2240x1800mm) |
Machine Weight: lbs. | 6,284 lbs. (2850kg) |
