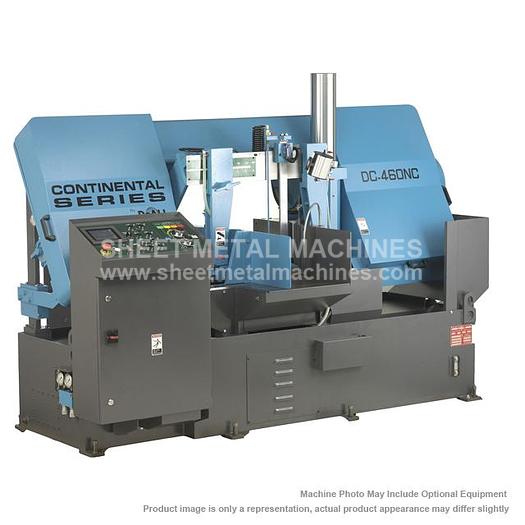

DOALL DC-460NC Production Bandsaw

DOALL DC-460NC Production Bandsaw

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer DOALL 18 inch Production Bandsaw DC-460NC

  • Machine Capacity: w 20” x h 18" (510mm x 460mm)
  • Round Capacity: 18" (460mm)
  • Production Level: High
  • Standard Features: Programmable Logic Controller (PLC) for All Machine Functions, Variable Index Vice Control and Fully-Hydraulic Operations
  • The DoALL DC-460NC Continental Series horizontal band saw is designed for cutting a wide range of metals on a high production basis. The DC-460NC provides the user with fully automatic operation, digital PLC controls for all machine functionality and heavy-duty construction.
  • Parts manufacturers requiring nesting capabilities will enjoy the plug-n-play vertical hold-down clamp assemblies, to produce at a faster rate with greater accuracy -- less wasted materials and less time per cut. Make sure to review the “details” tab below, to see all of the exclusive features and benefits offered by DoALL Continental Series™ band saws.
  • Touch Screen Control: Easy operator input including - 20 job storage function. Control is multi-lingual for today's workforce. The control panel will display error message when an incorrect entry is made. Easy switching between imperial or metric units.
  • High-Efficiency Transmission: High-efficiency worm gear box built to decrease wear and transmit full torque to the saw blade. Double wide “V” belt to avoid slipping, transmitting full motor power to the transmission.
  • Hydraulic Chip Conveyor: Adjustable speed auger style conveyor allows for coolant drain from chips before extraction.
  • Coolant Thru Carbide Faced Saw Guide Inserts: Supplies coolant to the blade evenly before and after the cut creating straighter cuts and allowing longer blade life due to coolant being supplied at the tooth tip and removal of chips.
  • Efficiently Designed Hydraulic System: Engineered low-pressure system allows for a smoother and quieter operation which aids in longer component life and easy accessibility for maintenance.
  • Band Wheels: 30 Degree lay back head design minimizes band twist, reducing band fatigue, and allows a smaller foot print. Flange cast steel wheels insure band tracking to prevent tooth set lost.
  • Blade Shock Proof Device: Anti-vibration device decreases vibration when entering the cut creating quieter cutting and increasing blade life.
  • Multi-step Full Stroke Vises with Split Front Vise and Variable Vise Pressure: Shorter hydraulic cylinders reduce the overall footprint combining the advantage of rack and full stroke. Split front vice clamps on both sides of the blade reducing vibration and remnant length. Variable Vise Pressure will prevent distortion in thin wall tubing and extrusions.
  • Hydraulic Blade Tension: Eliminates possible error of over/under tightening the band for maximum cutting rates and band life.
  • Back-up Bearing/Inserts: Supports the back of the saw band reducing vibration while cutting increasing blade life.
  • Retractable Shuttle Type Index Vise: Both jaws retract when the vise is opened to accommodate the movement of crooked stock -- increasing accuracy and repeatability.
  • Magnetic Scale for Indexer: The scale which creates indexing accuracy is protected from dirt and oil build up insuring its long life.
  • Nesting Fixtures: Plug-n-play vertical hold-down clamp assemblies allow the operator to perform multiple-piece cutting increasing productivity.
  • Warranty: One-year parts and service subject to the terms and conditions. Optional ten year warranty is available (DoALL Cut Above 10 Year Warranty).


STANDARD EQUIPMENT:

  • Programmable Logic Controller for all machine functions
  • Feed rate/feed force saw head control
  • Infinite band speed controlled variable frequency drive
  • Hydraulic retractable shuttle vice material indexer on chrome rails
  • Rapid and creep speed index vice control
  • Multi-step full stroke cylinder with a split front vice clamping fore and aft of the cut
  • Variable vice pressure control
  • Vertical hydraulic cylinders with hold down fixtures
  • Spring loaded, zero clearance, coolant through carbide faced saw guide inserts with lead in rollers
  • Adjustable power driven band cleaning brushes with coolant flush line attached
  • Halogen work light
  • Flushing hose for machine wash down and auxiliary coolant nozzles
  • Hydraulic band tension
  • Hydraulic adjustable speed auger design chip conveyor
  • Saw band break/stall motion detector shut off switch
  • Band door interlocks
  • Operation and parts manuals on USB stick
  • One 6.5 ft. (2M) idler input conveyor
  • Maintenance tool kit
  • Complimentary DoALL Cutting Fluids package
  • One (1) complimentary DoALL Bi Metal saw blade


OPTIONAL ITEMS:

  • 10 ft Medium-duty idler conveyor 20" between frames. Roller capacity 850 Ibs.
  • 5 ft Medium-duty idler conveyor 20" between frames. Roller capacity 850 Ibs.
  • Out of square detection
  • Additional USB stick of manuals
  • Laser line
  • A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards.
  • DoALL Cut Above 10 Year Warranty Annual Investment


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerDoALL
ModelDC-460NC
ConditionNew
Stock NumberDC-460NC
Cutting Capacity - Round18" (460mm)
Cutting Capacity - Rectangle (W x H)20" W x 18" H (510mm x 460mm)
Saw Blade - Width x Length1.5" x 209"
Band TensionHydraulic
Hydraulic System - Motor2 HP
Hydraulic System - Reservoir Size22 Gal. (85 Liters)
Coolant SystemFlood coolant
Coolant System - Motor HP1/4 HP
Coolant Tank - Reservoir Size29 Gal. (110 Liters)
Indexer - Length per Stroke19.68"
Indexer - Maximum Index Strokes Length177"
Indexer - Remnant Length7.875" (non-bundle)
Voltage Requirement230V-60Hz-3ph, Wye configuration
Total Amp Draw (FLA)33 Amps
Machine Weight6,284 lbs. (2850kg)
