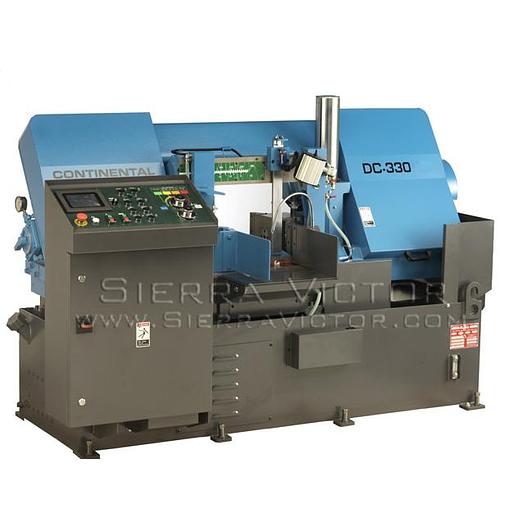

DOALL Semi-Automatic Bandsaw DC-330SA

DOALL Semi-Automatic Bandsaw DC-330SA
Contact us for price
Description
Please note: many products ship straight from manufacturer DOALL Semi-Automatic Bandsaw DC-330SA ITEM: 13" Semi-Automatic Bandsaw MANUFACTURER: DoALL MODEL: DC-330SA The DC-330SA Semi-Automatic Continental Series of high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL semi-automatic saws is the perfect choice. Once you have set your desired feed rate, blade speed and initial vise opening, a cut is complete, the band shuts off and the head returns to the upright open position and locks. Then the operator must manually reposition the material for another cut. Semi-automatic operation also increases blade life and cutting accuracy as the operator is not manually pressuring or overloading the saw blade during the cut. STANDARD EQUIPMENT: Programmable Logic Controller (PLC) control for all electric and hydraulic functions Multi-step full stroke vises with split front vise and variable vise pressure control Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers Power driven, coolant flushed, blade cleaning wire brush Flushing hose and auxiliary coolant nozzles Hydraulic blade tension Automatic chip conveyor Blade breakage/stall motion detector shut off switch Band door interlocks Work light One set of 6-foot (2-meter) roller stands Set up tools and tool box Complimentary DoALL Cutting Fluids package One DoALL bi-metal saw blade Instruction and parts manuals on CD or USB data stick Additional 10 foot (3m) conveyor Magnetic chip remover
Specifications
Manufacturer | DoALL |
Model | DC-330SA |
Condition | New |
Stock Number | DC-330SA |
Rectangle: (W x H) | 13 x 15-3/4" (330x400mm) |
Maximum Nesting Capacity at 90° | 14-1/2" x 6-5/8" (370x170mm) |
Minimum Nesting Capacity at 90° | 6-1/2" x 2" (165x50mm) |
Band Saw Blade (L x W x Gage) | 167" x 1-1/4" x 0.042" (4242 x 34 x1.1mm) |
Band Speed | 66-262 FPM (20 – 80 m/min) |
Band Drive | 5 hp (3.75kW) |
Hydraulic Pump | 1 hp (0.75kW) |
Hydraulic Tank Capacity | 16 gal (60 lit) |
Coolant Motor | 1/4 hp (0.2 kW) |
Coolant Tank Capacity | 21 gal (80 lit) |
Material Pass Line Height | 27-1/2" (700mm) |
Dimensions (W x L x H) | 88" x 48" x 61" (2240x1210x1550mm) |
Machine Weight | 3,638 lbs (1650 kg) |
