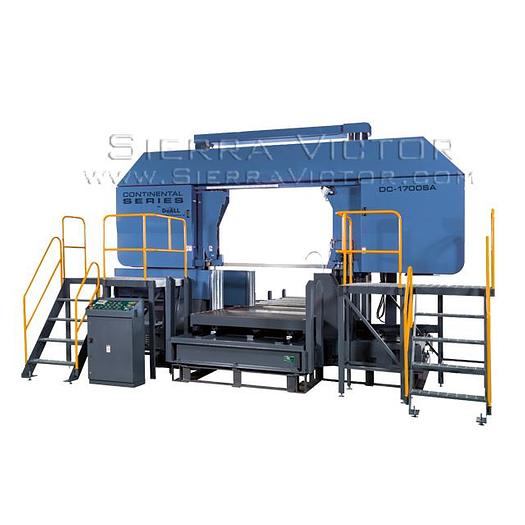

DOALL Dual Column Semi-Automatic Bandsaw DC-1700SA

DOALL Dual Column Semi-Automatic Bandsaw DC-1700SA

Contact us for price

orCall 386-304-3720


Please note: many products ship straight from manufacturer DOALL Dual Column Semi-Automatic Bandsaw DC-1700SA ITEM: 51.2" Dual Column Semi-Automatic Bandsaw MANUFACTURER: DoALL MODEL: DC-1700SA The DC-1700SA Dual Column, Semi-Automatic Continental Series high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL dual column, semi-automatic saws is the perfect choice. Programmable Logic Controller (PLC) control for all electric and hydraulic functions Power driven, coolant flushed, blade cleaning wire brush Flushing hose and auxiliary coolant nozzles Hydraulic blade tension Automatic chip conveyor Blade breakage/stall motion detector shut off switch Band door interlocks One set of 6-foot (2-meter) roller stands Set up tools and tool box Complimentary DoALL Cutting Fluids package One DoALL bi-metal saw blade Instruction and parts manuals on CD or USB data stick


Stock NumberDC-1700SA
Rectangle: (W x H)67" x 51.2" (1700 x 1300mm)
Band Saw Blade (L x W x Gage)512 x 3-3/20 x 0.063" (13000x80x1.6mm)
Band Speed39-246 FPM (12 – 75 m/min)
Band Drive20 hp (15 kw)
Hydraulic Pump5 hp (3.7kW)
Hydraulic Tank Capacity43.6 gal (165 L)
Coolant Pump1/4HP (0.2 kw)
Coolant Tank Capacity74 gal (280 L)
Material Pass Line Height26.8" (680 mm)
Dimensions (W x L x H)244" x 110.2" x 149.6" (6200 x 2800 x 3800 mm)
Machine Weight46,297 lbs (21,000 kg)
