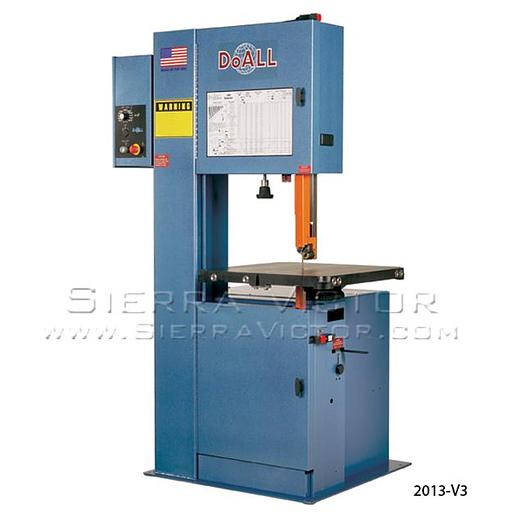

DoALL Vertical Contour Saw 2013-V3
DoALL Vertical Contour Saw 2013-V3
Contact us for price
Description
Please note: many products ship straight from manufacturer DoALL Vertical Contour Saw 2013-V3 ITEM: 20" Vertical Contour Saw MANUFACTURER: DoALL MODEL: 2013-V3 The DoALL 2013-V3 vertical contour band saw features variable frequency AC inverter drive controls that start the motion of the band wheels slowly to reduce mechanical shock and increase drive train life, plus a dynamic braking function that rapidly stops motion when power is shut-off. The 2013-V3 upright metal cutting band saw is among the most versatile 20" x 13" (508x330mm) sawing machines on the market today. MADE IN USA STANDARD EQUIPMENT: Wrench for saw guides Dual range transmission Variable frequency AC drive Band speed indicator Band door interlocks Band tension indicator Job selector One set of high-speed, insert-type guide blocks for bands 1/16" - 1/2" Chip pan One set of steel guide inserts for bands 1/4", 3/8" and 1/2" Wrench for table trunnion Transmission oil One DoALL bi-metal saw blade Instruction and parts manuals on CD or USB data stick
Specifications
| Manufacturer | DoALL |
| Model | 2013-V3 |
| Condition | New |
| Stock Number | 2013-V3 |
| Band Speed | 30-5,500 fpm (10-1,680mpm) |
| AC Motor Drive | 3-hp (2.25kW) |
| Throat, Band to Column | 20" (508mm) |
| Maximum Work Height | 13" (330mm) |
| Band Width Capacity | 1/8" - 1" (3.2 - 25.4mm) |
| Band Length | 154" (3,910mm) |
| Table | 26" x 26" (660 x 660mm) Tilts 45R, 10L |
| Table to Floor Height | 39" (990mm) |
| Table Capacity | 500 lbs (227kg) |
| Upper Wheel Adjustment | 3" (76mm) |
| Wheels | Aluminum with crowned rubber tires |
| Height, Max | 81-1/4" (2,064mm) |
| Floor Area Req. | 53-1/2" x 45" (1,360 x 1,145mm) |
| Machine Weight (net) | 1,250 lbs. (567kg) |
