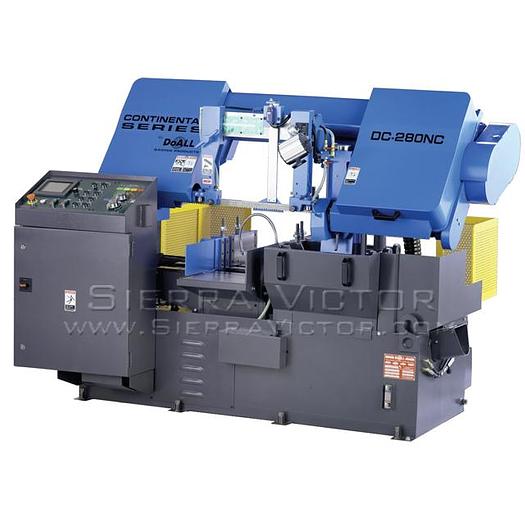

DoALL Production Bandsaw DC-280NC

DoALL Production Bandsaw DC-280NC

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer DOALL Production Bandsaw DC-280NC ITEM: 11" Production Bandsaw MANUFACTURER: DoALL MODEL: DC-280NC The DC-280NC Continental Series high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. They offer automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life. STANDARD EQUIPMENT: PLC control for all electric and hydraulic functions Infinitely variable speed controlled by VFD Hydraulic retractable shuttle vise material indexer Rapid and creep speed index vise control Multi-step full stroke vises with split front vise and variable vise pressure control Nesting fixture for bundle cutting Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers Power driven, coolant flushed, blade cleaning wire brush Flushing hose and auxiliary coolant nozzles Hydraulic blade tension Automatic chip conveyor Blade breakage/stall motion detector shut off switch Band door interlocks Work light One 6-1/2 ft. (2M) conveyor Set up tools and tool box Complimentary DoALL Cutting Fluids package One DoALL bi-metal saw blade Instruction and parts manuals on CD or USB data stick

Specifications

ManufacturerDoALL
ModelDC-280NC
ConditionNew
Stock NumberDC-280NC
Rectangle: (W x H)11-3/4 x 11" (300 x 280mm)
Bundle Capacity Maximum9-3/4" W x 4" H (250mm x 100mm)
Bundle Capacity Minimum6-1/2" W x 5/8" H (165mm x 15mm)
Band Saw Blade1-1/4" x 0.042" x 151" (34x1.1x3820mm)
Band Speed52-275 fpm (16-85mpm)
Band Drive5 hp (3.7 kW)
Hydraulic PumpMotor 1 hp (.75 kw)
Hydraulic Tank Capacity16 gal (60 lit)
Coolant Tank Capacity21 gal (80 lit)
Automatic Index Length Single15.75" (400mm)
Automatic Index Length Multiple141.73" (3600mm)
Material Pass Line Height27-1/2" (700mm)
Dimensions (W x L x H)83" x 79" x 51" (2100x1990x1300mm)
Machine Weight3,858 lbs. (1750kb)
