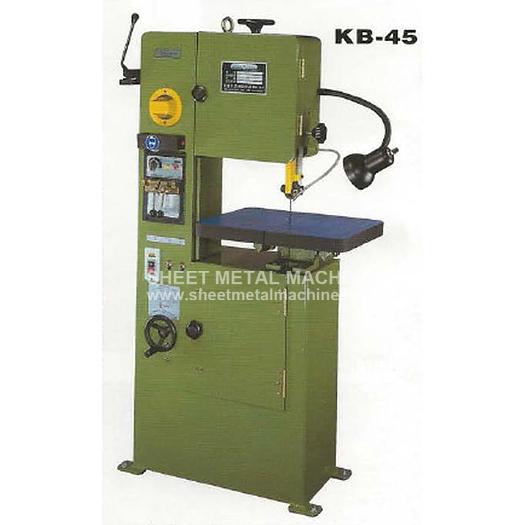

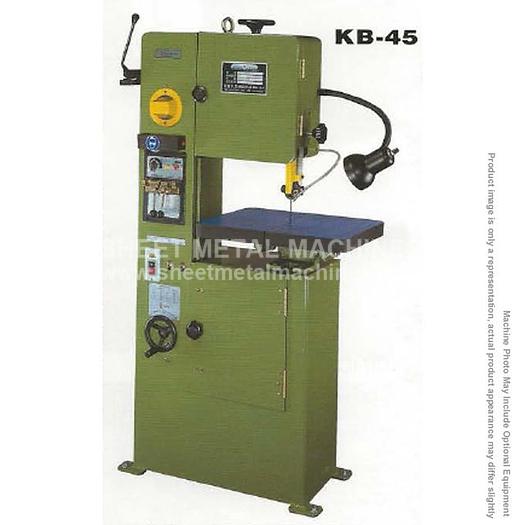

BIRMINGHAM Vertical Metal Cutting Band Saw KB-45
BIRMINGHAM Vertical Metal Cutting Band Saw KB-45
Contact us for price
Description
Please note: many products ship straight from manufacturer BIRMINGHAM 17-15/16" Vertical Metal Cutting Band Saw KB-45
- Saw blade butt welder with integrated annealing unit
- Blade shear, grinder
- Brush for cleaning lower drive wheel
- Low voltage working lamp
- One set of required tools
- One instruction and parts manual
OPTIONAL ITEMS:
- Rip Fence for straight, repeated cuttings easily removable for varied sizes
- Miter protractor for angular cutting
- Electro-magnetic switch and overload protection
- Groove Table
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEARS - Parts
Specifications
| Manufacturer | Birmingham |
| Model | KB-45 |
| Condition | New |
| Stock Number | KB-45 |
| Cutting Capacity - Throat Depth | 17-15/16" (455mm) |
| Cutting Capacity - Max, work height | 10-1/15" (255mm) |
| Table Size | 23-1/2" x 19-1/2" |
| Table inclination (4 ways) | 15° |
| Saw Blade Length | 137-3/8" |
| Saw Blade Width | 3-16mm |
| Saw Blade Speeds | 25-115 (85-375) |
| Butt Welder Capacity | 2.4 KVA 3-16mm (1/8" - 5/8") |
| Drive Motor | 1 HP, 1-phase, 110V |
| Net Weight (approx.) | 660 lbs. |
| Gross Weight (approx.) | 772 lbs. |
| Measurement (LxWxH) | 43-1/16" x 26" x 79-1/4" |
