BAILEIGH Dual Miter Band Saw BS-350M

BAILEIGH Dual Miter Band Saw BS-350M
$8,519
Description

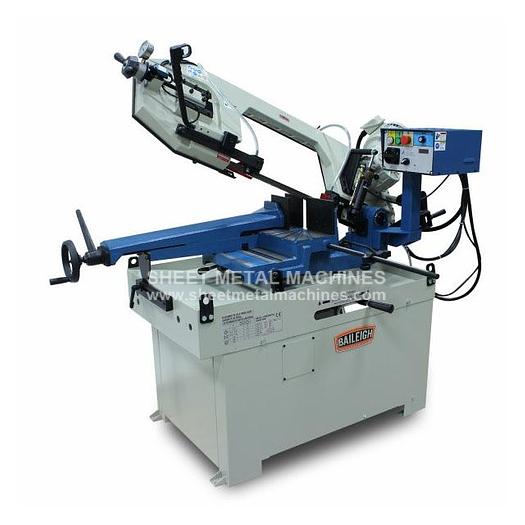

Please note: many products ship straight from manufacturer BAILEIGH Dual Miter Band Saw BS-350M Need to cut at multiple angles in both directions? This dual-mitering band saw has a cast iron head and bow that can swivel 60° right and 45° left
- 10.5” round capacity at 90°.
- Runs on 220-volt single-phase power. You can use the dual miter band saw just about anywhere.
- 2 hp motor, driven by an AC inverter, makes the machine reliable.
- Direct-drive gearbox saves you the trouble of adjusting pulleys or replacing broken belts!
- Cast iron head and bow, machined to exacting tolerances, reduce vibration and deliver the straightest, highest quality cuts on the market.
- 1” blade width.
- Variable speed control, from 66- 280 fpm, lets you select the speed to suit your material and application.
- Ball bearing blade guides help you get the blade as close to the material as possible to make accurate cuts, ensuring long blade life.
- Patented blade tension device, a liquid-filled gauge, makes it easy to check and adjust the tension.
- Comes standard with a flood coolant system to wash away metal chips and help blades last longer.
- Modes of operation:
- Choose between 2 modes of operation, manual or hydraulic descent, depending on your preference and project.
- Manual descent mode:For small production runs.
- Perfect for small or medium sized fabricators’ needs.
- Turn on the machine via a trigger switch in the descent handle.
- Manually guide the band saw blade through the material.
- Hydraulic descent mode:For larger production runs.
- Increases blade life and reduces operator fatigue.
- Downfeed adjustment for feed pressure.
- Warranty and support:
- We cover this horizontal band saw with a 1-year parts warranty.
- Both the saw and replacement parts are typically in stock for fast deliveries.
- Includes lifetime technical support by phone. Call up our team of experienced reps any time for troubleshooting or project advice.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
Manufacturer | Baileigh Industrial |
Model | BS-350M |
Condition | New |
Stock Number | BA9-1001557 |
Motor Hp | 2 |
Return | Manual |
Miter Adjustment | Dual Swivel Head |
Miter Angle | 0 – 60°, 45°L |
Motor | High Torque 1.5Kw (AC) |
Capacity Round 90 x 45 x 60 x 45L | 10.63" x 9.45" x 6.3" x 8.28" |
Capacity Rectangular 90 X 45 X 45L | 13.77" x 8.66" x 9.45" x 6.3" 7.3" x 4.33" |
Capacity Square 90 x 45 x 60 x 45L | 10.24" x 8.66" x 5.9" x 7.09" |
Table Height | 35" |
Blade Guide | Carbide x Roller |
Blade Speed (fpm) | 66–280 Variable |
Descent Control | Hydraulic |
Drive | Gear |
Power | 220V / 1-phase |
Shipping Dimensions | 69" x 29" x 44" |
Shipping Weight | 864 lbs |
