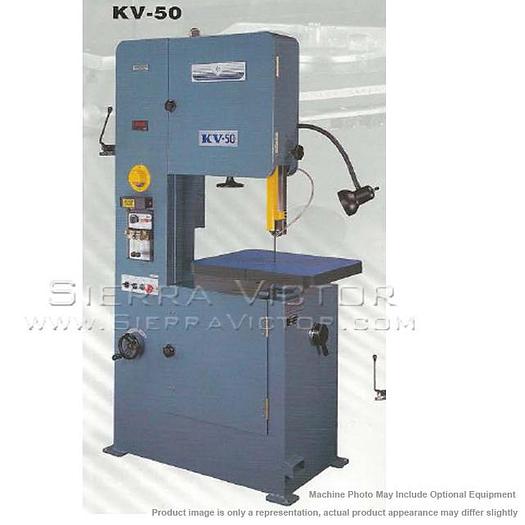

BIRMINGHAM Vertical Metal Cutting Band Saw KV-50

BIRMINGHAM Vertical Metal Cutting Band Saw KV-50

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer BIRMINGHAM 20-1/2" Vertical Metal Cutting Band Saw KV-50

  • Saw blade butt welder with integrated annealing unit
  • Blade shear, grinder
  • Brush for cleaning lower drive wheel
  • Low voltage working lamp
  • One set of required tools
  • One instruction and parts manual


OPTIONAL ITEMS:

  • Rip fence for straight, repeated cuttings easily removable for varied size
  • Miter protractor for angular cutting
  • Groove table


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEARS - Parts

Specifications

ManufacturerBirmingham
ModelKV-50
ConditionNew
Stock NumberKV-50
Cutting capacity - Blade to column20-1/2"
Cutting capacity - Max work height12-3/8"
Table size23-1/2" x 19-1/2"
Table inclination (4 ways)15°
Saw blade length153"
Saw blade width3-16mm
Saw blade speeds (Low)Low 20-85m/min (65-280 fpm)
Saw blade speeds (High)High 120-500m/min (400-1640 fpm)
Butt welder capacity2.4KVA, 3-16mm (1/8" to 5/8")
Drive motor2 HP, 3-phase, 220V
Dimensions approx52" x 30" x 85"
Net Weight959 lbs.
Gross Weight1,124 lbs.
