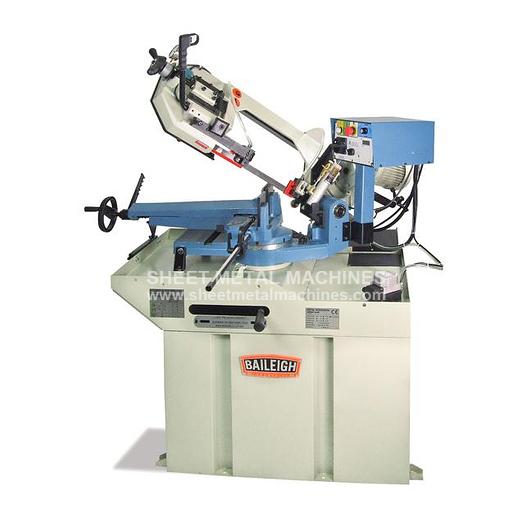

BAILEIGH Gear Driven Band Saw BS-260M

BAILEIGH Gear Driven Band Saw BS-260M

$5,100

orCall 386-304-3720

Description

  • Please note: many products ship straight from manufacturer BAILEIGH Gear Driven Band Saw BS-260M The gear-driven BS-260M industrial band saw is one of the most versatile saws on the market. An AC inverter for speed control runs on 220-volt single-phase power. Use it almost anywhere!
  • Capacity of 8.91” round at 90°.
  • Dual-mitering head swivels up to 60° to the right and up to 45° to the left.
  • Change the miter angle in seconds with the quick-release head lock.
  • Solid cast iron saw bow and pivot ensure the straightest cuts with little to no vibration.
  • Accepts standard 1” blades.
  • 8 precision ball bearings keep the blade in line.
  • Patented blade tensioning device helps you check the tension and safely shuts down the machine if the blade breaks.
  • You can adjust the cutting speed from 66 to 280 fpm to make high-quality cuts in a specific material.
  • Direct-drive gearbox design saves you time in the long run—no pulleys to adjust or belts to break!
  • 2 operating modes:
  • Manual descent mode for small production runs: Turn on the machine via the trigger switch, then manually guide the material. Perfect for small-to-medium-sized shops.
  • Hydraulic descent for larger production runs: Increases blade life and reduces operator fatigue. The hydraulic descent has a downfeed adjustment for feed pressure.
  • Comes standard with a powerful flood coolant system that washes away metal chips, cools and lubricates the blade, and helps prolong blade life.
  • Fully-welded steel base stabilizes the saw, reduces vibrations, and helps to maintain accuracy for decades.
  • Baileigh covers this small horizontal band saw with a 1-year parts warranty.
  • We typically keep all replacement parts in stock for fast deliveries.
  • Includes lifetime technical support by phone. Call up our team of experienced reps whenever you have a problem with the saw.

Specifications

ManufacturerBaileigh Industrial
ModelBS-260M
ConditionNew
Stock NumberBS-260M
Motor Hp1.5
ReturnManual
Miter AdjustmentDual Swivel Head
Miter Angle0 – 60°, 45°L
MotorHigh Torque 1.1Kw (AC)
Capacity Round 90 x 45 x 60 x 45L8.91" x 5.9" x 3.54" x 4.33"
Capacity Rectangular 90 X 45 X 45L10.59" x 4.33" x 7.87" x 4.92" 6.3" x 4.33"
Capacity Square 90 X 45 X 60 X 45L8.66" x 5.7" x 3.34" x 4.33"
Table Height35"
Blade GuideCarbide x Roller
Blade Speed (fpm)66–280 Variable
Descent ControlHydraulic
DriveGear
Power220V 1-Phase
Shipping Dimensions69" x 44" x 48"
Shipping Weight985 lbs
