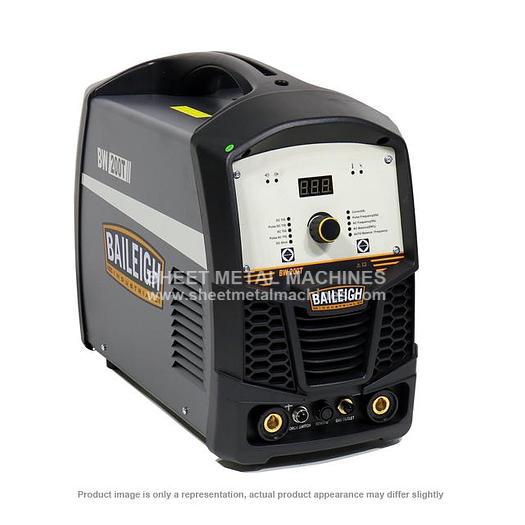

BAILEIGH 200A AC/DC Pulse TIG Welder BW-200T

BAILEIGH 200A AC/DC Pulse TIG Welder BW-200T

$1,795

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer


  • The BW-200T is the ultimate 200amp AC/DC Welding Machine. With variable AC frequency and pulse welding it caters for the more technical aluminum jobs. It features a complete set of control functions to cater for the more demanding jobs and includes a stick function to add to its versatility. The BW-200T is the ideal welder for the aluminum welding fanatic.
  • IGBT inverter
  • Dual voltage can run on 120 volt or 230 volt single-phase power
  • AC/DC
  • Remote adjustment
  • Pulse ratio and frequency
  • Peak / base current
  • Variable AC frequency / balance
  • Thermal overload protected
  • Fan cooled (on demand)
  • Tig / Stick / Lift Arc
  • 2 /4 step
  • Pre / Post gas flow
  • Up / Down Slope
  • Variable arc force
  • Generator safe
  • Easily sourced consumables
  • Includes TIG Torch, ground clamp, 6-50P 250V plug, adaptor to 120V plug, gas hose with regulator, and foot pedal

ITEM: 200A AC/DC Pulse TIG Welder MANUFACTURER: BAILEIGH MODEL: BW-200T

Specifications

ManufacturerBaileigh Industrial
ModelBW-200T
ConditionNew
Stock NumberBW-200T
Cooling SystemFan Cooled
Maximum Current200 Amps
PowerDual Voltage - 120V/230V Single Phase
Rated Input Current20A (120V) / 31A (230V)
Rated Input Capacitance2.4KVA (120V) / 7.1KVA (230V)
No-Load Voltage65V (120V) / 65V (230V)
Rated Working Voltage22.6 (120V) / 26.4 (230V)
Efficiency80%
Power Factor.8
Insulation ClassF
Enclosure ProtectionIP21S
MMA Rated Current20A~65A (120V) / 20A~160A (230V)
TIG Arc WayHF (120V) / HF (220V)
Rated Current (DC TIG)10A~95A (120V) / 10A~200A (230V)
Peak Current (DC Pulse TIG)10A~95A (120V) / 10A~200A (230V)
Base Current (DC Pulse TIG)50% Peak Current (120V) / 50% Peak Current (230V)
Duty Cycle (DC Pulse TIG)40% (120V) / 35% (230V)
Pulse Frequency (DC TIG)0.2Hz~200Hz (120V) / 0.2Hz~200Hz (230V)
Rated Current (AC TIG)20A~95A (120V) / 20A~200A (230V)
Frequency (AC TIG)50Hz~150Hz (120V) / 50Hz~150Hz (230V)
Balance (AC TIG)50%~85% (120V) / 50%~85% (230V)
Peak Current (AC Pulse TIG)20A~95A (120V) / 20A~200A (230V)
Base Current (AC Pulse TIG)50% Peak Current (120V) / 50% Peak Current (230V)
Frequency (AC Pulse TIG)50Hz~150Hz (120V) / 50Hz~150Hz (230V)
Balance (AC Pulse TIG)50%~85% (120V) / 50%~85% (230V)
Pulse Frequency (AC Pulse TIG)0.2Hz~20Hz (120V) / 0.2Hz~20Hz (230V)
Duty Cycle (AC Pulse TIG)40% (120V) / 35% (230V)
Special NotesIncludes TIG Torch, ground clamp, 6-50P 250V plug, adaptor to 120V plug, gas hose with regulator, and foot pedal
CertificationCSA UL
Shipping Dimensions20" x 10" x 17"
Shipping Weight64 lbs.
