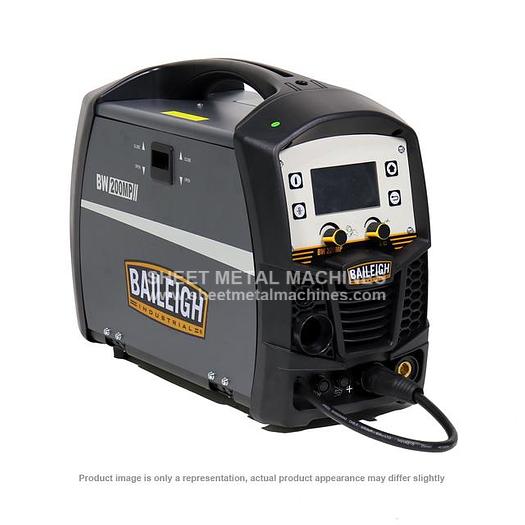

BAILEIGH 200A Multi-Process Welder BW-200MP

BAILEIGH 200A Multi-Process Welder BW-200MP

$1,695

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer BAILEIGH 200A Multi-Process Welder BW-200MP The Baileigh Industrial BW-200MP is a dual-voltage inverter-powered multi-process welder that features an LCD control screen that quickly and easily walks the user through setup. This 200A welder will accel in almost any environment and comes with the features that you demand. IGBT inverter technology requires 25% less input power and delivers consistent power output Dual voltage can run on 120 volt or 230 volt single-phase power LCD control screen provides quick and easy setup with save for future setup mode Performs MIG and Flux Core Welding 40–140 Amps (120V) and 40–200 Amps (230V); TIG Welding up to 180 Amps; Stick Welding up to 180 Amps Built-in, adjustable spot timer adds versatility Synergic wire diameter and material thickness settings makes for easy work Infinite wire feed speed control allows user to adjust the voltage and current accurately ARC force (MMA) Hot start (MMA) 2T/4T (trigger lock off/ trigger lock on) Generator Safe Easily sourced consumables Includes 10ft. spool gun, electrode holder, TIG torch, foot pedal, MIG torch, ground clamp, gas regulator w/hoses, 6-50P 250V plug, and adaptor to 120V plug

ITEM: 200A Multi-Process Welder MANUFACTURER: BAILEIGH MODEL: BW-200MP

Specifications

ManufacturerBaileigh Industrial
ModelBW-200MP
ConditionNew
Stock NumberBW-200MP
Cooling SystemFan Cooled
Maximum Current200 Amps
PowerDual Voltage - 120V/230V Single Phase
Rated Input Current20A (120V) / 36A (230V)
Rated Input Capacitance3.5KVA (120V) / 8.6KVA (230V)
No-Load Voltage69V
Rated Working Voltage18.5V (120V) / 24V (230V)
MMA Welding Current10A~70A (120V) / 10A~180A (230V)
LIFT Welding Current10A~70A (120V) / 10A~180A (230V)
MIG Welding Current40A~90A (120V) / 40A~120A (230V)
Rated Duty Cycle40% (120V) / 20% (230V)
100% Rated Duty Cycle57A (120V) / 89A (230V) - 10 Minutes
Efficiency85%
Power Factor.75
Insulation ClassF
Enclosure ProtectionIP21S
Special NotesIncludes 10ft. spool gun, electrode holder, TIG torch, foot pedal, MIG torch, ground clamp, gas regulator w/hoses, 6-50P 250V plug, and adaptor to 120V plug
CertificationCSA UL
Shipping Dimensions26" x 13" x 18"
Shipping Weight71 lbs.
