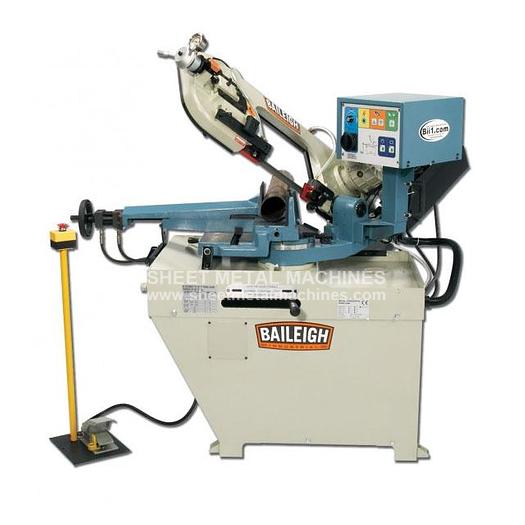

BAILEIGH Semi-Auto Bandsaw BS-260SA

BAILEIGH Semi-Auto Bandsaw BS-260SA
$9,929
Description
- Please note: many products ship straight from manufacturer BAILEIGH Semi-Automatic Bandsaw BS-260SA Similar to our BS-260M, the BS-260SA semi-automatic bandsaw manages faster turnaround times. We designed this model with foot pedal controls for production runs
- Maximum capacity of 8.93” round at 90°.
- Dual-angle head cuts at up to 60° right and up to 45° left, making it one of the most versatile mitering band saws on the market.
- Quick-release head lock allows you to change the miter angle in seconds.
- Industrial-grade hydraulic system runs on 220-volt single-phase power.
- Foot pedal controls the clamping of material as well as the raising a lowering of the saw head (both automatic).
- AC inverter controls the speed of the 1.5 hp motor—a big improvement over the old DC driver board set-up. Inverters are more reliable and last longer.
- Adjust the variable speed from 66 to 280 fpm to fit the material and the application and extend blade life.
- Cast iron bow and pivot head plus a heavy-duty reinforced sheet metal base provide a rigid platform to ensure the straightest cuts.
- Hydraulic blade break switch automatically shuts the machine down if the blade should break.
- Comes standard with a coolant system, which will extend the machine’s lifetime of use.
- Baileigh covers this horizontal band saw with a 1-year parts warranty.
- We typically keep this metal-cutting band saw and its replacement parts in stock for fast deliveries.
- Includes lifetime technical support by phone. Call up our team of reps, all of whom have hands-on machine experience, whenever you need help with the saw.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
Manufacturer | Baileigh Industrial |
Model | BS-260SA |
Condition | New |
Stock Number | BA9-1001438 |
Motor Hp | 1.5 |
Return | Hydraulic |
Miter Adjustment | Dual Swivel Head |
Miter Angle | 0 – 60°, 45°L |
Motor | High Torque 1.1Kw (AC) |
Capacity Round 90 x 45 x 60 x 45L | 8.93" x 5.9" x 3.54" x 4.33" |
Capacity Rectangular 90 X 45 X 45L | 10.59" x 4.33" x 7.87" x 4.92" x 6.3" x 4.33" |
Capacity Square 90°/ 45° / 60° | 8.66" x 5.7" x 3.34" x 4.33" |
Table Height | 35" |
Blade Guide | Carbide x Roller |
Blade Speed (fpm) | 66–280 Variable |
Descent Control | Pressure Assist Hydraulic |
Drive | Gear |
Power | 110 / 220V, 1-phase |
Shipping Dimensions | 62" x 44" x 63" |
Shipping Weight | 890 lbs |
