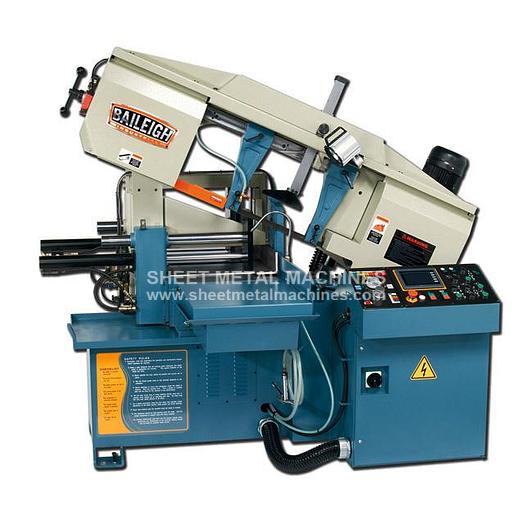

BAILEIGH Automatic Bandsaw BS-20A

BAILEIGH Automatic Bandsaw BS-20A

$37,740

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer BAILEIGH 13" x 18" Automatic Bandsaw BS-20A


  • Need to increase production rates on large jobs? The BS-20A’s hydraulic system can automatically clamp, cut, and feed bundles. The heavy steel frame maintains accuracy.
  • Cuts up to 13” round and 13” x 18” rectangle at 90°.
  • 89 to 256 fpm variable speed, so you can fine-tune for your material.
  • Accepts a standard 1” blade (included) for speed and precision.
  • Available in 220-volt or 440-volt 3-phase models (440-volt is a special order).
  • Miters up to 45° with a degree indicator to show your angle.
  • Powerful 5 hp motor runs the low-pressure industrial-grade hydraulic system.
  • Automatic system, with a hydraulic vise and automatic return, saves time and smoothly manages the whole cutting process, including transitions.
  • Digital encoders feed the material between cuts for repeatability.
  • Hydraulic large-capacity bundling system clamps the material tight to ensure a consistent cut across all of the pieces.
  • 2-speed blade descent allows for faster cycle times.
  • Delta touchscreen programmer is easy to use, so you can get to work right away.
  • Programmer can run in manual or automatic mode.
  • Infeed and outfeed table can handle 5,000 lbs. of material.
  • Patented blade tension device makes it simple to set the correct tension. You can just line up the arrow within the green gauge.
  • Electro-welded steel framework reduces vibrations and gives this horizontal band saw the structural strength to tackle large capacities accurately.
  • In case a blade breaks, automatic blade shut-off protects your safety.
  • Variable-speed metal chip auger and coolant system keep the saw clean and make blades last longer.
  • Bright halogen work light lets you clearly see what the machine’s doing.
  • Most parts are in stock, so you don’t have to wait long to get replacements.
  • Covered by a 1-year parts warranty.
  • You can count on lifetime technical support by phone from a team of reps with hands-on machine experience.

Specifications

ManufacturerBaileigh Industrial
ModelBS-20A
ConditionNew
Stock NumberBS-20A
Country of ManufactureTaiwan
ReturnHydraulic
Miter AdjustmentSwivel Head
Miter Angle0 – 45°
Capacity Rectangular 90 x 45 x 45L13" x 18" x 13" x 11"
Capacity Round 90° x 45°13" x 11"
Chip RemovalHydraulic Auger
Capacity Square 90° x 45°13" x 11"
Table Height32.3"
Blade GuideCarbide x Roller
Blade Motor5 HP
Blade Speed (fpm)89 – 256 (Variable Speed)
Material Clamping BundlingHydraulic
Material FeedHydraulic
Descent ControlPressure Assist Hydraulic
Power220V / 3-phase
Shipping Dimensions90" x 87" x 69"
Shipping Weight3,500 lbs.
