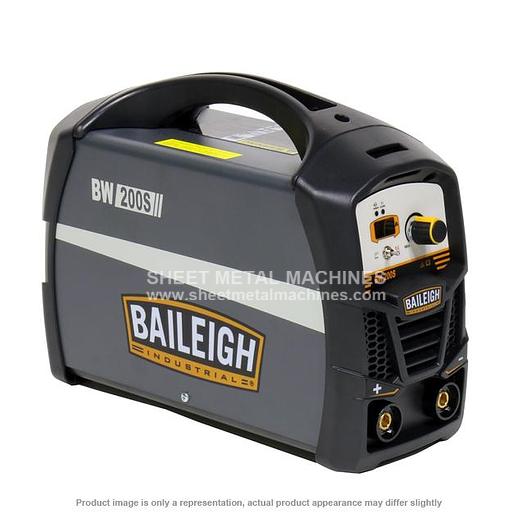

BAILEIGH 200A Stick (SMAW) Welder BW-200S

No longer available

BAILEIGH 200A Stick (SMAW) Welder BW-200S



Please note: many products ship straight from manufacturer BAILEIGH 200A Stick (SMAW) Welder BW-200S The BW-200S from Baileigh Industrial is an industrial level 200 Amp Arc welder. It features extremely solid construction but remains very portable at only 16 lbs. This BW-200S Industrial welding machine is the ideal choice for a welder working at the job site in during extreme conditions. Portable IGBT Inverter stick welder Dual voltage can run on 120 volt or 230 volt single-phase power Intelligent voltage sensing – This welder knows what voltage it is plugged into and (when plugged into 120V) will limit the output of the welder Step-less Current Adjustment - adjustments are infinite and do not “click” between only a few options Thermal Overload Protected, will shut down welding if its temperature is too high Fan Cooled Anti-Stick / Hot Start - automatically increases output at the beginning of a weld to pre-heat the weld and electrode Arc Force, keeps arc more stable, with less sticking, when the electrode is close Lift ARC TIG capable – Torch not included High Open Circuit Voltage Generator safe and will tolerate large voltage variations Easily sourced consumables Includes electrode holder, ground clamp, 6-50P 250V plug, and adaptor to 120V plug

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



ManufacturerBaileigh Industrial
Stock NumberBW-200S
Cooling SystemFan Cooled
Maximum Current200 Amps
PowerDual Voltage - 120V/230V Single Phase
Rated Input Current20A (120V) / 40A (230V)
Rated Input Capacitance4.4KVA (120V) / 9.2KVA (230V)
No-Load Voltage78V (120V) / 78V (230V)
Rated Working Voltage23V (120V) / 28V (230V)
Welding Current15~75A (120V) / 12~200A (230V)
Rated Duty Cycle100% (120V) / 15% (230V)
100% Rated Duty Cycle77A (120V) / 77A (230V)
Power Factor.75
Insulation ClassH
Enclosure ProtectionIP21S
Special NotesIncludes electrode holder, ground clamp, 6-50P 250V plug, and adaptor to 120V plug
CertificationCSA UL
Shipping Dimensions18" x 10" x 14"
Shipping Weight20 lbs.
