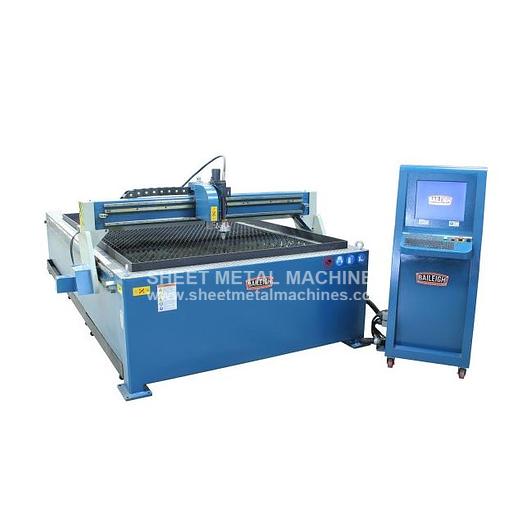

BAILEIGH 5' x 10' CNC Plasma Table PT-105HD-W CNC

  • Our PT-105HD-W includes a water bath and has the structural strength to handle 5’ x 10’ sheets. Automatic height detection is ideal for production runs. It arrives nearly fully assembled and comes with software.
  • Runs on 220-volt single-phase power.
  • Includes integrated water bath for cooler cutting and less airborn mess.
  • Control the X, Y, and Z axis movement from the sturdy podium with large console screen and keypad.
  • Includes easy-to-learn design software that you can load into any basic PC (more details below).
  • Console offers a pre-loaded library of shapes that you can resize and alter at the table—without a computer.
  • Automatic height detection on the Z-axis makes perfect cuts in corrugated or uneven materials.
  • Panasonic brushless servo motors, controlled by Panasonic® servo motion controllers, drive the gantry.
  • Industrial-grade gantry travel system for the X, Y & Z axis made from extremely rigid structural steel.
  • Gantry can move out of the way for a full 10-foot sheet during loading, minimizing the chance of machine damage.
  • High gantry (one of the highest in the industry) lets you clearly see its movement for better adjustment and control.
  • Axes ride on heavy-duty Hiwin square rails.
  • Wipers on rails keep welding dust out of the slide for a smooth transfer without noisy friction caused by dirt build-up.
  • Weigh an impressive 4000 lbs.
  • Fully-welded boxed tubing construction can easily support the weight of maximum capacity material.
  • Steel framework will hold its shape and stay accurate for decades, unlike many competitors’ aluminum frames, which buckle and warp under heat.
  • 80% Pre-built plasma table saves you time and effort.
  • Covered by a 1-year parts warranty.
  • You’ll benefit from lifetime technical support by phone. Call up one of our experienced reps whenever you need troubleshooting.
  • Plasma torch systems sold separately. We’ll let you choose the Thermal Dynamics Cutmaster model that works best for your application. This table is compatible with automatic torches, but not manual ones.
  • BobCAD-Cam Express Design Software (Included)
  • The PT-105HD-W comes standard with BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the plasma table via a USB drive.


PT-CUTMASTER A60 Thermal Dynamics 60 Amp Plasma Cutting System PT-CUTMASTER A80 Thermal Dynamics 80 Amp Plasma Cutting System PT-CUTMASTER A120 Thermal Dynamics 120 Amp Plasma Cutting System


ManufacturerBaileigh Industrial
ModelPT-105HD-W CNC
Stock NumberPT-105HD-W CNC
Table StyleWater
CapacityDepends on Plasma System Chosen
Table Dimensions60" x 140"
Travel Speed315 Inches Per Minute
Table Load Capacity1" Mild Steel
DriveServo Motor
Power220V / 1-phase
Shipping Dimensions180" x 97" x 75" & 69" x 44" x 29"
Shipping Weight4,620 lbs
