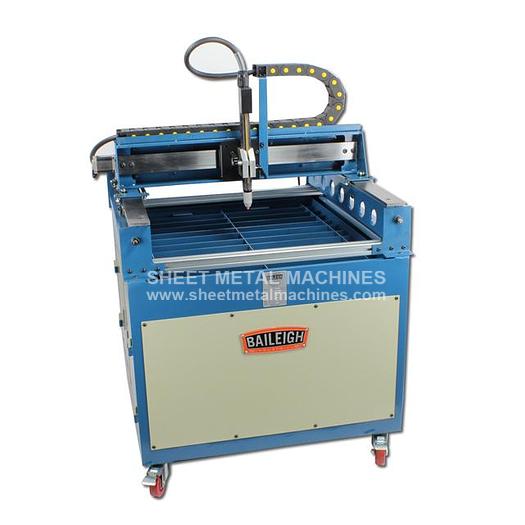

BAILEIGH Plasma Table PT-22

BAILEIGH Plasma Table PT-22

$6,895

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer


  • With a steel frame, this CNC plasma cutting table delivers a lot of value for its price. We include features that other brands consider upgrades, like design software and a water bath.
  • Runs on 110-volt power and will work at almost any fabrication site in North America.
  • 2’ x 2’ (610 x 610mm) cutting area.
  • Comes fully assembled with correct alignment. No need to spend hours building.
  • Most other companies’ plasma tables come in 5 or 6 boxes and cost about as much to ship as Baileigh’s larger single box shipment.
  • Includes user-friendly programming software (see more details below).
  • You can control the torch using the handheld panel with a jog dial for the X and Y axes and program start and stop buttons.
  • Durable, high-quality stepper motors drive the X axis (single drive) and Y axis (dual drive).
  • All motor controllers and electronics are enclosed. No loose wires to get in your way.
  • Industrial cable track on the X axis ensures smooth cutting movement.
  • 2 different torch-holders to accept both automated torches and handheld torches.
  • Pre-cut flat bar grates support the material.
  • Fully-welded steel frame will stay square for accurate cutting. By contrast, many competitors’ aluminum tables will warp due to heat over time.
  • Small footprint accommodates shops with limited space. You won’t find many competitors that make machines this compact.
  • 5” caster wheels (2 stationary, 2 swiveling) let you move the table easily.
  • Water bath with a ball valve drain collects dirt, debris, and smoke. It also keeps the table cool to prevent material from moving while being cut.
  • Cabinet in the base with latched and hinged access doors.
  • Covered by a 1-year parts warranty.
  • Lifetime technical support by phone means that you can always count on troubleshooting and advice from an experienced Baileigh rep.
  • 550 lbs. shipping weight.
  • Plasma torch systems sold separately. We’ll let you choose the automatic or manual Thermal Dynamics Cutmaster model that works best for your application.
  • BobCAD-Cam Express Design Software (Included)
  • The PT-22 comes standard with BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the plasma table via a USB drive.


ITEM: 2' x 2' Plasma Table MANUFACTURER: BAILEIGH MODEL: PT-22

Specifications

ManufacturerBaileigh Industrial
ModelPT-22
ConditionNew
Stock NumberPT-22
Table StyleWater
Table Dimensions29" x 31"
Speed NumberInfinite
Table Load Capacity3/4" Mild Steel
CapacityDepends on Plasma System Chosen
DriveStepper Motor
Power Requirements110V
SoftwareBobCAD Cam
Shipping Dimensions46" x 44" x 52"
Shipping Weight590 lbs.
