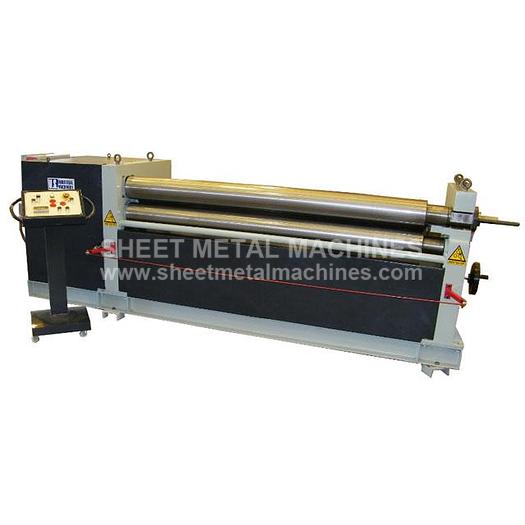

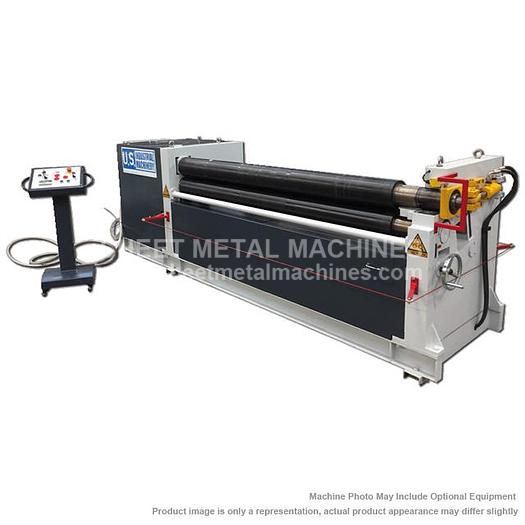

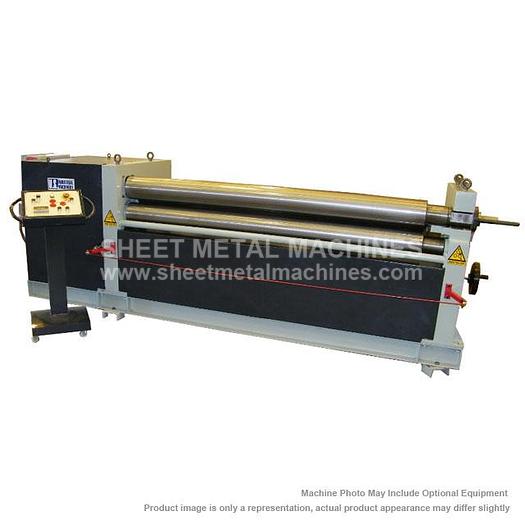

U.S. INDUSTRIAL Initial Pinch Plate Roll USR630

U.S. INDUSTRIAL Initial Pinch Plate Roll USR630

$33,265 FREE SHIPPING!

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer U.S. INDUSTRIAL 6' x 5/16" Initial Pinch Plate Roll USR630 STANDARD EQUIPMENT:

  • Heavy duty gear-motor drives top and bottom pinch rolls
  • Powered Roll Adjustment and Manual Precision Pinch Roll Adjustment
  • Emergency Trip Line
  • Pedestal Control
  • Quick Roll Adjustment
  • Roll Position Indicators
  • Crowned Rolls
  • Low Voltage Push Button Controls
  • Machine is usually stocked with optional hydraulic swing-out feature for top roll
  • Machine is usually stocked with optional digital display with memory for position of bending roll
  • Machine is usually stocked with optional ability to tilt rolls, and blocker for making tapered cones
  • Machine is usually stocked with optional hardened rolls and black oxide coated


ADDITIONALLY EQUIPPED WITH (INCLUDED IN PRICE):

  • Hardened Rolls
  • Cone Rolling Attachment
  • LED Readout With Memory
  • Hydraulic Top Roll Swing-Out


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerUS Industrial
ModelUSR630
ConditionNew
Stock NumberUSR630
Capacity6' x 5/16" mild steel @ 65,000 PSI
Pre bend capacity5/16" Mild Steel @ 65,000 PSI
Top Roll Diameter 6.57" / 6.7" (ends/middle)
Bottom Roll Diameter6.57" / 6.7" (ends/middle)
Bending Roll Diameter6.22" / 6.34" (ends/middle)
Speed12.5 F.P.M
Main drive motor5.5 HP Reduction Gear Drive
Adjustment motor3 HP
Voltage220/440V, 3 phase
Machine dimensions144" x 54" x 44"
Machine weight approx.6,800 lbs
