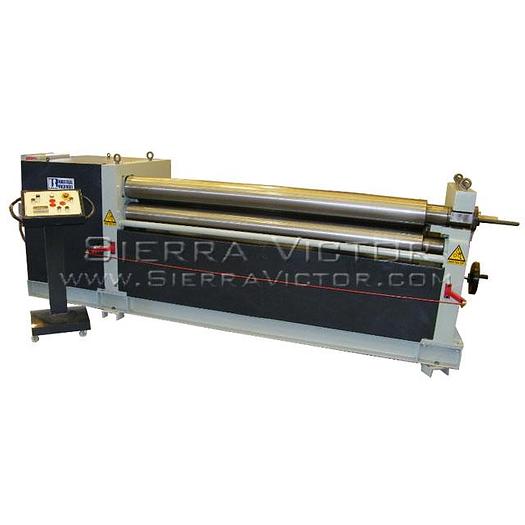

U.S. INDUSTRIAL Initial Pinch Plate Roll USR5375

U.S. INDUSTRIAL Initial Pinch Plate Roll USR5375
$26,265 Call for Freight Specials
Description
Please note: many products ship straight from manufacturer U.S. INDUSTRIAL 5' x 3/8" Initial Pinch Plate Roll USR5375
STANDARD EQUIPMENT:
- Heavy duty gear-motor drives top and bottom pinch rolls
- Powered Roll Adjustment and Manual Precision Pinch Roll Adjustment
- Emergency Trip Line
- Pedestal Control
- Quick Roll Adjustment
- Roll Position Indicators
- Crowned Rolls
- Low Voltage Push Button Controls
- Machine is usually stocked with optional hydraulic swing-out feature for top roll
- Machine is usually stocked with optional digital display with memory for position of bending roll
- Machine is usually stocked with optional ability to tilt rolls, and blocker for making tapered cones
- Machine is usually stocked with optional hardened rolls and black oxide coated
ADDITIONALLY EQUIPPED WITH (INCLUDED IN PRICE):
- Hardened Rolls
- Cone Rolling Attachment
- LED Readout With Memory
- Hydraulic Top Roll Swing-Out
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
Manufacturer | US Industrial |
Model | USR5375 |
Condition | New |
Stock Number | USR5375 |
Capacity | 5' x 3/8" mild steel @ 65,000 PSI |
Pre bend capacity | 3/8" Mild Steel @ 65,000 PSI |
Top Roll Diameter | 6.57" / 6.7" (ends/middle) |
Bottom Roll Diameter | 6.57" / 6.7" (ends/middle) |
Bending Roll Diameter | 6.22" / 6.34" (ends/middle) |
Speed | 12.5 F.P.M |
Main drive motor | 5.5 HP Reduction Gear Drive |
Adjustment motor | 3 HP |
Voltage | 220/440V, 3 phase |
Machine dimensions | 127" x 54" x 44" |
Machine weight approx. | 4,150 lbs |
