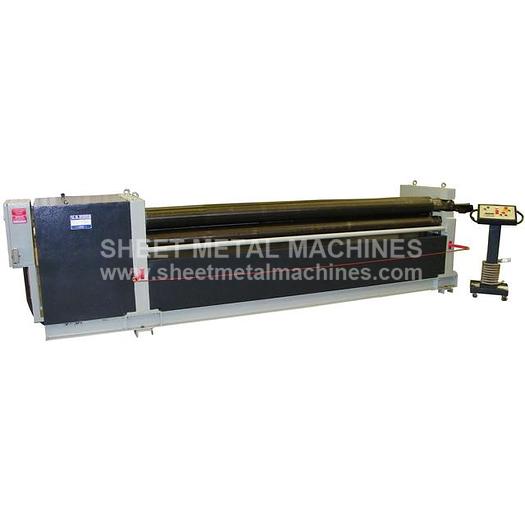

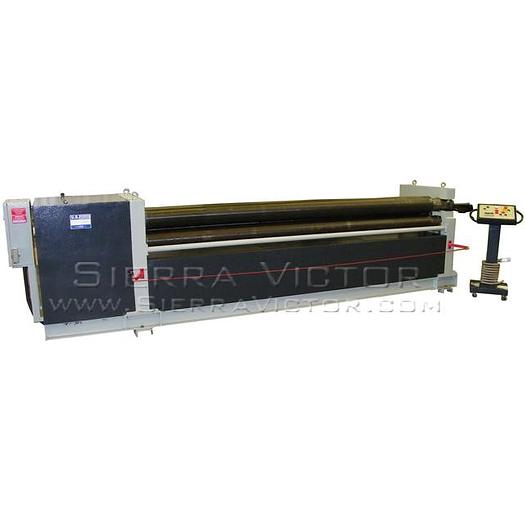

U.S. INDUSTRIAL Initial Pinch Plate Roll USR1025

U.S. INDUSTRIAL Initial Pinch Plate Roll USR1025


orCall 386-304-3720


Please note: many products ship straight from manufacturer U.S. INDUSTRIAL 10' x 1/4" Initial Pinch Plate Roll USR1025 STANDARD EQUIPMENT: Powered Roll Adjustment and Manual Precision Pinch Roll Adjustment Top Roll Manual Swingout Emergency Trip Line Pedestal Control Quick Roll Adjustment Roll Position Indicators Crowned Rolls Low Voltage Push Button Controls ADDITIONALLY EQUIPPED WITH: Hardened Rolls Cone Rolling Attachment LED Readout With Memory Hydraulic Top Roll Swing-Out


ManufacturerUS Industrial
Stock NumberUSR1025
Capacity10' x 1/4" mild steel @ 65,000 PSI
Pre bend capacity1/4" Mild Steel @ 65,000 PSI
Roll Diameter7.4" on all 3 rolls
Speed19 F.P.M
Main drive motor5.5 HP Reduction Gear Drive
Adjustment motor3 HP
Voltage220/440V, 3 phase
Machine dimensions177" x 54" x 44"
Machine weight approx.9,250 lbs
