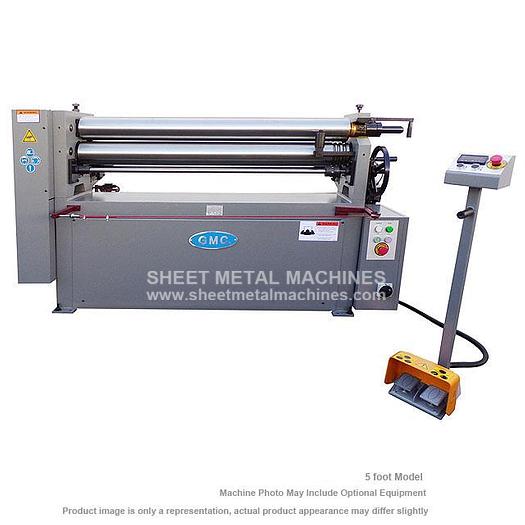

GMC Machine Tools Heavy Duty Power Bending Roll PBR-1010E

GMC Machine Tools Heavy Duty Power Bending Roll PBR-1010E

$20,950

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer GMC Heavy Duty Power Bending Roll PBR-1010E ISO 9001 certified Taiwan machines All (3) rolls are hardened rolls as standard feature 3-rollers are driven to perform high accuracy Adjustable cone attachment included 3/8”, 1/2” and 5/8” grooves on rollers One wheel one-side operated for bending roll One wheel one-site operated for pinch roll ( E model is powered ) Heavy duty casting frame Heavy duty all steel welded construction 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance. Quiet running operation Easy swing-out top roller Safety line all around the machine for emergency stop All rolls run forward and reverse Safety type forward/reverse foot pedal Power source 220V, ( option: 440V, 3 phase ) One year industrial warranty for parts

STANDARD ITEMS: Adjustable cone attachment 3/8”, 1/2” and 5/8” grooves on rollers All (3) hardened rolls Removable safety foot pedal Operation & parts manual Orange color front cover is optional. E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs OPTIONAL ITEMS - CALL FOR PRICE: Safety fence for enclosure of the back side of the machine


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerGMC Machine Tools
ModelPBR-1010E
ConditionNew
Stock NumberPBR-1010E
Capacity: Mild Steel10' x 10 Ga
Capacity: Stainless Steel10' x 14 Ga
Roll Diameter6.70"
Min. Bending Dia.9"
Pre-Bend0.12"
Rolls Speed (ft. / min)17
Rolls Opening1/2"
Main Motor5 HP, 220V or 440V, 3-phase
Overall Dimensions (LxWxH)132" x 35" x 56"
Approx. Weight5,150 lbs.
