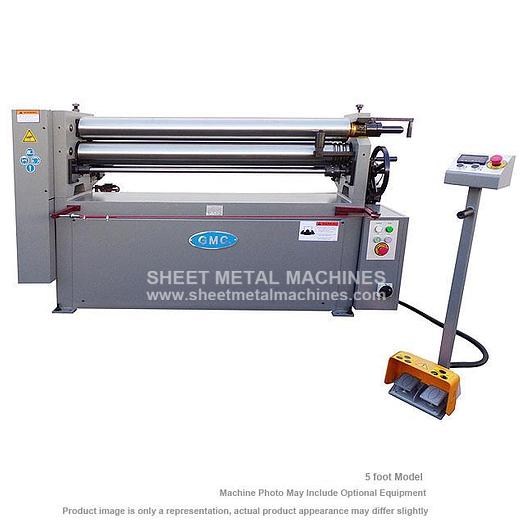

GMC Machine Tools Heavy Duty Power Bending Roll PBR-0810E

GMC Machine Tools Heavy Duty Power Bending Roll PBR-0810E
$18,950
Description
Please note: many products ship straight from manufacturer GMC Heavy Duty Power Bending Roll PBR-0810E ISO 9001 certified Taiwan machines All (3) rolls are hardened rolls as standard feature 3-rollers are driven to perform high accuracy Adjustable cone attachment included 3/8”, 1/2” and 5/8” grooves on rollers One wheel one-side operated for bending roll One wheel one-site operated for pinch roll ( E model is powered ) Heavy duty casting frame Heavy duty all steel welded construction 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance. Quiet running operation Easy swing-out top roller Safety line all around the machine for emergency stop All rolls run forward and reverse Safety type forward/reverse foot pedal Power source 220V, (option: 440V, 3 phase) One year industrial warranty for parts
STANDARD ITEMS: Adjustable cone attachment 3/8”, 1/2” and 5/8” grooves on rollers All (3) hardened rolls Removable safety foot pedal Operation & parts manual Orange color front cover is optional. E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
Manufacturer | GMC Machine Tools |
Model | PBR-0810E |
Condition | New |
Stock Number | PBR-0810E |
Capacity: Mild Steel | 8’2” x 10 Ga |
Capacity: Stainless Steel | 8’2” x 14 Ga |
Roll Diameter | 6" |
Min. Bending Dia. | 8" |
Pre-Bend | 0.12" |
Rolls Speed (ft. / min) | 17 |
Rolls Opening | 1/2" |
Main Motor | 5 HP, 220V or 440V, 3-phase |
Overall Dimensions (LxWxH) | 132" x 35" x 56" |
Approx. Weight | 4,550 lbs. |
