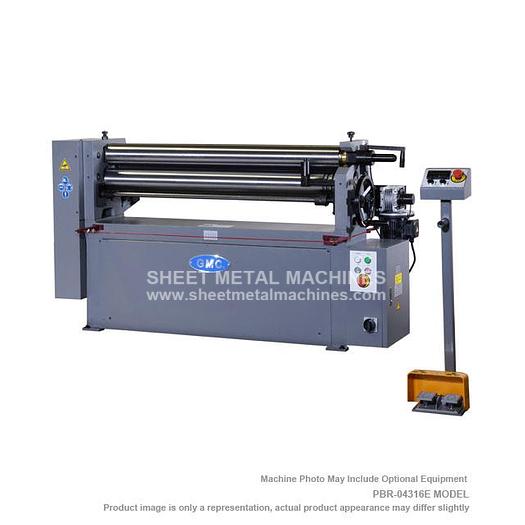

GMC Machine Tools GMC Bending Roll PBR-0425E

GMC Machine Tools GMC Bending Roll PBR-0425E

$12,950

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

  • ISO 9001 certified
  • Taiwan machines
  • All (3) rolls are hardened rolls as standard feature
  • 3-rollers are driven to perform high accuracy
  • Adjustable cone attachment included
  • 3/8”, 1/2” and 5/8” grooves on rollers
  • One wheel one-side operated for bending roll
  • One wheel one-site operated for pinch roll ( E model is powered )
  • Heavy duty casting frame
  • Heavy duty all steel welded construction
  • 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
  • Quiet running operation
  • Easy swing-out top roller
  • Safety line all around the machine for emergency stop
  • All rolls run forward and reverse
  • Safety type forward/reverse foot pedal
  • Power source 220V, ( option: 440V, 3 phase )
  • One year industrial warranty for parts


STANDARD ITEMS:

  • Adjustable cone attachment
  • 3/8”, 1/2” and 5/8” grooves on rollers
  • All (3) hardened rolls
  • Removable safety foot pedal
  • Operation & parts manual
  • Orange color front cover is optional.
  • E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs


OPTIONAL ITEMS - CALL FOR PRICE:

Safety fence for enclosure of the back side of the machine

Specifications

ManufacturerGMC Machine Tools
ModelPBR-0425E
ConditionNew
Stock NumberPBR-0425E
Capacity: Mild Steel4’3” x 1/4”
Capacity: Stainless Steel4’3” x 3/16"
Roll Diameter6-1/4”
Min. Bending Dia.8-1/4”
Pre-Bend0.25"
Rolls Speed (ft. / min)20
Rolls Opening1/2"
Main Motor5 HP, 220V or 440V, 3 PH
Overall Dimensions (LxWxH)78" x 33" x 52"
Approx. Weight3,850 lbs.
