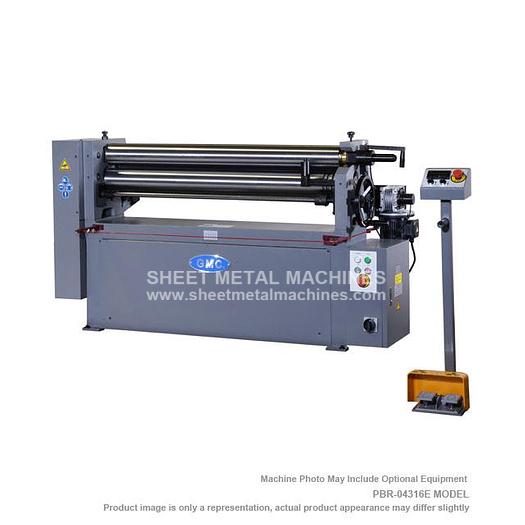

GMC Machine Tools Power Bending Roll PBR-04316E

GMC Machine Tools Power Bending Roll PBR-04316E
$9,950
Description
Please note: many products ship straight from manufacturer GMC Power Bending Roll PBR-04316E ISO 9001 certified Taiwan machines All (3) rolls are hardened rolls as standard feature 3-rollers are driven to perform high accuracy Adjustable cone attachment included 3/8”, 1/2” and 5/8” grooves on rollers One wheel one-side operated for bending roll One wheel one-site operated for pinch roll ( E model is powered ) Heavy duty casting frame Heavy duty all steel welded construction 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance. Quiet running operation Easy swing-out top roller Safety line all around the machine for emergency stop All rolls run forward and reverse Safety type forward/reverse foot pedal Power source 220V, ( option: 440V, 3 phase ) One year industrial warranty for parts
STANDARD ITEMS: Adjustable cone attachment 3/8”, 1/2” and 5/8” grooves on rollers All (3) hardened rolls Removable safety foot pedal Operation & parts manual E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs
Specifications
Manufacturer | GMC Machine Tools |
Model | PBR-04316E |
Condition | New |
Stock Number | PBR-04316E |
Capacity: Mild Steel | 4’3” x 3/16 Ga |
Capacity: Stainless Steel | 4’3” x 10 Ga |
Roll Diameter | 4-3/4” |
Min. Bending Dia. | 6" |
Pre-Bend | 0.16” |
Rolls Speed (ft. / min) | 20 |
Rolls Opening | 1/2" |
Main Motor | 2 HP, 3 PH 220V or 440V |
Overall Dimensions (LxWxH) | 78" x 30" x 52" |
Approx. Weight | 2,750 lbs. |
