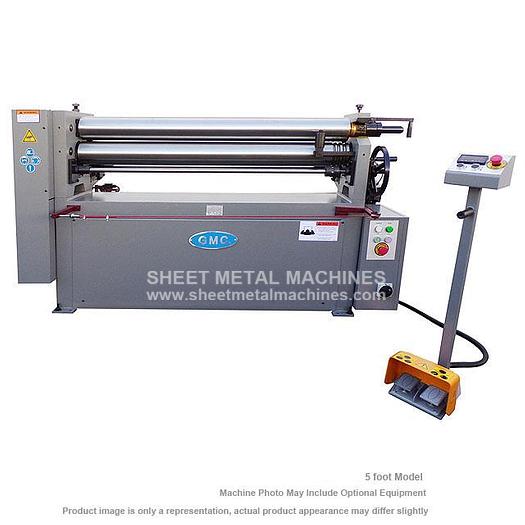

GMC Machine Tools Power Bending Roll PBR-0512E

GMC Machine Tools Power Bending Roll PBR-0512E
$8,950 FREE SHIPPING!
Description
Please note: many products ship straight from manufacturer GMC Power Bending Roll PBR-0512E ITEM: 5' x 12 ga Power Bending Roll MANUFACTURER: GMC MODEL: PBR-0512E ISO 9001 certified Taiwan machines All (3) rolls are hardened rolls as standard feature 3-rollers are driven to perform high accuracy Adjustable cone attachment included 3/8”, 1/2” and 5/8” grooves on rollers One wheel one-side operated for bending roll One wheel one-site operated for pinch roll ( E model is powered ) Heavy duty casting frame Heavy duty all steel welded construction 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance. Quiet running operation Easy swing-out top roller Safety line all around the machine for emergency stop All rolls run forward and reverse Safety type forward/reverse foot pedal Power source 220V, ( option: 440V, 3 phase ) One year industrial warranty for parts
STANDARD ITEMS: Adjustable cone attachment 3/8”, 1/2” and 5/8” grooves on rollers All (3) hardened rolls Removable safety foot pedal Operation & parts manual Orange color front cover is optional. E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs
OPTIONAL ITEMS - CALL FOR PRICE:
Safety fence for enclosure of the back side of the machine
Specifications
Manufacturer | GMC Machine Tools |
Model | PBR-0512E |
Condition | New |
Stock Number | PBR-0512E |
Capacity: Mild Steel | 5’1” x 12 Ga |
Capacity: Stainless Steel | 5’1” x 16 Ga |
Roll Diameter | 4” |
Min. Bending Dia. | 5" |
Pre-Bend | 0.12" |
Rolls Speed (ft. / min) | 20 |
Rolls Opening | 1/2" |
Main Motor | 3 HP, 220V (optional 440V, 3 PH) |
Overall Dimensions (LxWxH) | 96" x 32" x 52" |
Approx. Weight | 2,950 lbs. |
