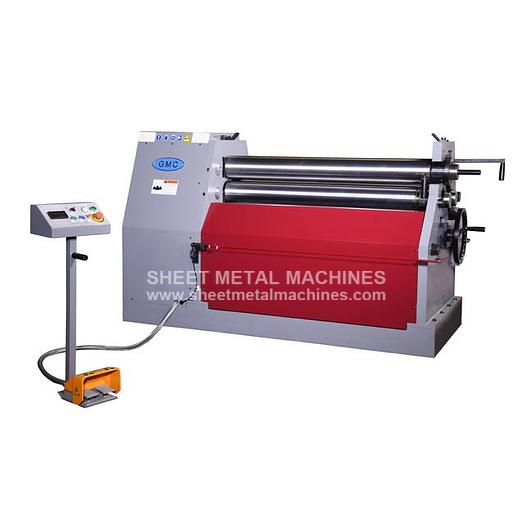

GMC Initial Pinch Hydraulic Plate Bending Roll HBR-0425

GMC Initial Pinch Hydraulic Plate Bending Roll HBR-0425

$14,850

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer GMC Initial Pinch Hydraulic Plate Bending Roll HBR-0425 ISO 9001 certified Taiwan Machines Easy swing –out top roller Standard cone attachment installed 1 each LED indicator for bending roll position Safety line all around the machine for emergency stop Heavy Duty all steel welded machine construction German Hydraulic logic system centrally located and quiet Bending roll is hydraulic powered up/down & tilting adjustment Planetary reduction gear and pump All three rolls are made of high grade alloy steel All rolls run forward and reverse Safety type foot pedal control Overload protection and disconnect switch Power source 208V/220V, (Option 460 V, 3 phase)

STANDARD ITEMS: LED readout indicator for bending roll position Safety line all around the machine for emergency stop Removable safety foot pedal Tool Box Cone attachment ( to make cone parts ) (3) wire grooves 3/8”, 1/2”, 5/8” on roll for bending wire OPTIONAL ITEMS - CALL FOR PRICE: Safety fence for enclosure of the back side of the machine


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerGMC Machine Tools
ModelHBR-0425
ConditionNew
Stock NumberHBR-0425
Roll Capacity: Mild Steel4’ x 1/4”
Roll Capacity: Stainless Steel4’ x 3/16”
Min. Roll Diameter8-1/4”
Rolls Length4’3”
Rolls Diameter5-7/8”
Pre-Bend0.16”
Rolls Speed7 rpm
Rolls Opening2-1/16”
Oil Tank Capacity25 gallons
Main Motor5 HP, 220V/440V, 3PH
Overall Dimensions (LxWxH)87" x 36" x 53"
Net Weight4,650 lbs.
