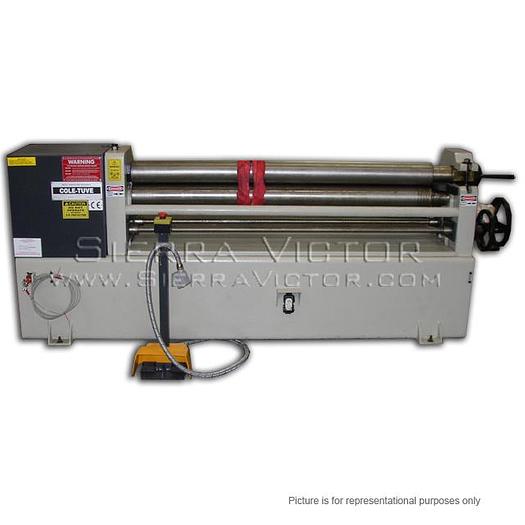

COLE-TUVE Initial-Pinch Sheet & Plate Bending Roll SRS-5-110

COLE-TUVE Initial-Pinch Sheet & Plate Bending Roll SRS-5-110

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer 5' x 11 ga COLE-TUVE Initial-Pinch Sheet & Plate Bending Roll SRS-5-110 COLE-TUVE Single-Initial Pinch Rolls utilize a design that has gained worldwide acceptance. Strong cast-iron frames are used on all sizes for rigidity and stability. The rolls are journalled in long-life bronze bearings. The upper and lower rolls are driven by a brake-motor through heavily proportioned gearbox, producing a single rolling speed. The lower front roll, which is used for clamping the workpiece, and the rear roll, which is used for setting the bending radius, are each adjusted by a single handwheel and both handwheels are conveniently located for ease of operation. The use of a single handwheel for each adjustment avoids the operator's having to move from one end of the machine to the other to adjust each roll (as is necessary on some other machines). A secure locking device keeps the upper roll in proper position during rolling and is easily released to allow the roll to be swung out for removal of the rolled part. A cone bending attachment is standard equipment and a movable foot control on a trailing lead add to operator convenience and ease of operation. The rolls are grooved for rolling three sizes of round bars. When delivered, the machine needs only to be connected to a power supply and is ready to operate. Cast iron frames for rigidity and stability Brake-motor for rapid stopping of rolls rotation Upper and lower rolls driven Lower and rear rolls adjustable Convenient handwheels for adjustment Upper roll swings out for removal of completed cylinder Locking device keeps the roll in position during rolling STANDARD EQUIPMENT: Low voltage at the control Movable foot control Emergency stop button on the control Emergency stop wire at front and rear of the machine Cone bending attachment Tiltable rear roll Grooves in rolls for 3/8", 1/2" and 5/8" round bar Scale to indicate position of the rear roll ITEM: 5' x 11 ga Initial-Pinch Sheet & Plate Bending Roll MANUFACTURER: COLE-TUVE / SAHINLER MODEL: SRS-5-110

Specifications

ManufacturerCole-Tuve
ModelSRS-5-110
ConditionNew
Stock NumberSRS-5-110
Diameter of all rolls4.33"
Overall Bending Length61"
Rolling Speed10' per minute
Motor HP3
Electrics3/60/220/440
Dimensions approximate, LxWxH107" x 30" x 40"
Weight- approximately2,640 lbs.
