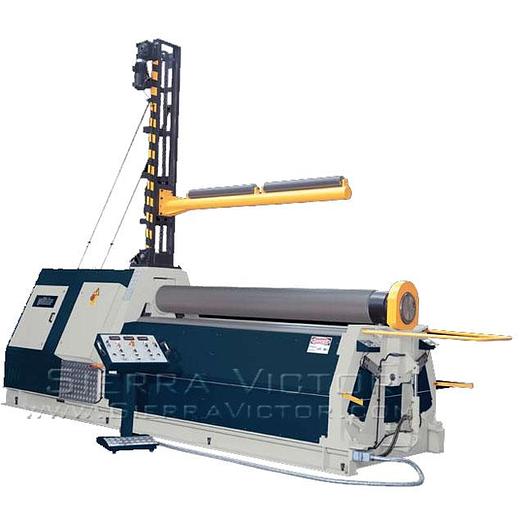

COLE-TUVE 4 Roll Hydraulic Double-Pinch Plate Roller 4RS-6-220
COLE-TUVE 4 Roll Hydraulic Double-Pinch Plate Roller 4RS-6-220
Contact us for price
Description
Please note: many products ship straight from manufacturer 6' x 3/8" COLE-TUVE 4 Roll Hydraulic Double-Pinch Plate Roller 4RS-6-220 Induction Hardened Rolls Two Speed Working System Three Electronic Digital Readouts Cone Bending Attachment Central Lubrication System Mobile Control Console All capacities rated for mild steel up to 80,000/36,000 PSI Tensile/Yield Strengths. Resulting flat ends at the leading and trailing edges of the plate are 1-1/2 to 2 times the plate thickness or less. * Models rated at 2 times upper roll diameter. FPM - Feet per minute. HP is the nearest equivalent to the Kw of the motor on the machine. ITEM: 6' x 3/8" 4 Roll Hydraulic Double-Pinch Plate Roller MANUFACTURER: COLE-TUVE / SAHINLER MODEL: 4RS-6-220
Specifications
| Manufacturer | Cole-Tuve |
| Model | 4RS-6-220 |
| Condition | New |
| Stock Number | 4RS-6-220 |
| PREBENDING TO TOP ROLL DIAMETER x 5 / CIRCULAR BENDING TO TOP ROLL DIAMETER x 1.5* | 5/16" |
| PREBENDING TO TOP ROLL DIAMETER x 1.5* | 1/4" |
| Overall Length of Rolls | 80.7" |
| Side Rolls | 6.30" |
| Rolling Speeds (FPM) | 5 & 19-1/2 |
| Motor | 7 HP |
| Dimensions (L x W x H) | 146" x 48" x 55" |
| Weight | 9,900 lbs. |
