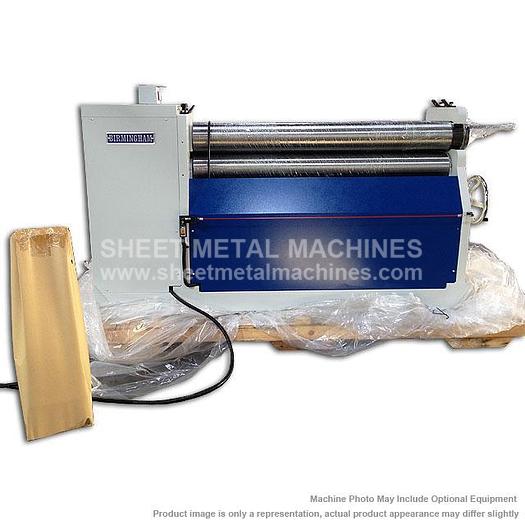

BIRMINGHAM Hydraulic Plate Roll R-0570H

BIRMINGHAM Hydraulic Plate Roll R-0570H

Contact us for price

orCall 386-304-3720


Please note: many products ship straight from manufacturer BIRMINGHAM 5' (60") x 9/32" Hydraulic Plate Roll R-0570H MADE IN TAIWAN Three rolls are driven by hydraulic power Pinch roll cylinders are adjusted simultaneously for added convenience All rolls are manufactured of high quality alloy steel and hardened to HRC 55°. Ruggedly constructed for precise and smooth operation as well as long service life. Top roll can be swiveled to facilitate removal of the finished workpiece Foot switch provides forward and backward motion control, and is protected by a housing Machine power shuts off automatically, when top roll swivels out from from the end frame. NOTE: Bigger Model R-0840H (4.0mm x 2540mm) and R-1020H (2.0mm x 3050mm) are available on request


Stock NumberR-0570H
Mild Steel Capacity5'1' x 9/32"
Roll Length & Diameter7"
Hydraulic Powered Pinch adjustmentStandard
Motor5 HP
Roll Speed2.37 m/min
Shipping Crate Size108" x 47" x 59" (2750 x 1200 x 1500mm)
Shipping Weight5,650 lbs.
