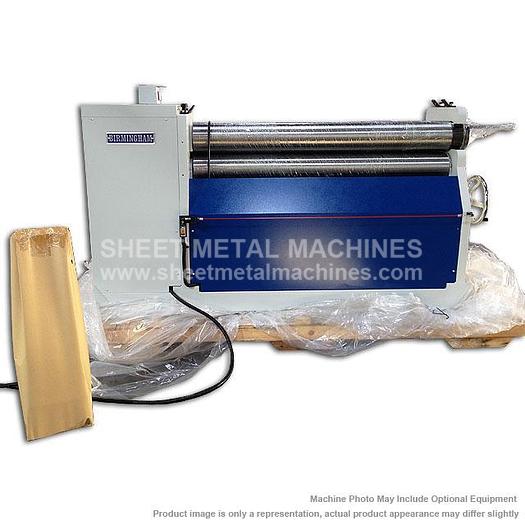

BIRMINGHAM Hydraulic Plate Bending Roll R-0520H

BIRMINGHAM Hydraulic Plate Bending Roll R-0520H

Contact us for price

orCall 386-304-3720


Please note: many products ship straight from manufacturer BIRMINGHAM 5' x 2mm Hydraulic Plate Bending Roll R-0520H Three rolls are driven by hydraulic power Pinch roll cylinders are adjusted simultaneously for added convenience All rolls are manufactured of high quality alloy steel and hardened to HRC 55°. Ruggedly constructed for precise and smooth operation as well as long service life. Top roll can be swiveled to facilitate removal of the finished workpiece Foot switch provides forward and backward motion control, and is protected by a housing Machine power shuts off automatically, when top roll swivels out from from the end frame. NOTE: Bigger Model R-0840H (4.0mm x 2540mm) and R-1020H (2.0mm x 3050mm) are available on request


Stock NumberR-0520H
Mild Steel Capacity2.0mm x 1550mm
Roll Diameter95mm (3.74")
Hydraulic Powered Pinch adjustmentStandard
Motor1.5 HP
Roll Speed3.6 m/min
Shipping Crate Size95" x 28" x 47" (2400 x 720 x 1200mm)
Shipping Weight1,764 lbs. (800 kgs)
