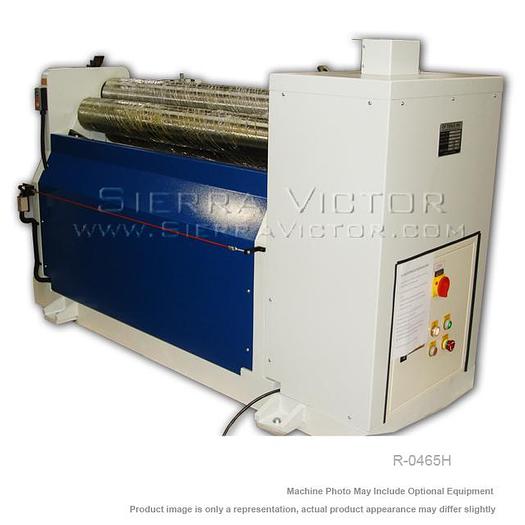

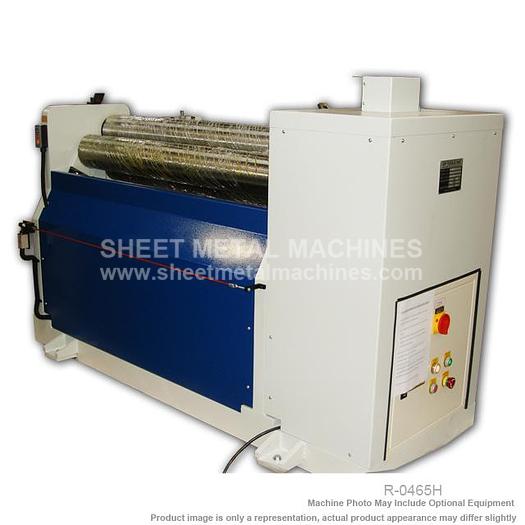

BIRMINGHAM Hydraulic Plate Bending Roll R-0465H

BIRMINGHAM Hydraulic Plate Bending Roll R-0465H

Contact us for price

orCall 386-304-3720


Please note: many products ship straight from manufacturer BIRMINGHAM 4' x 6.5mm Hydraulic Plate Bending Roll R-0465H Three rolls are driven by hydraulic power Pinch roll cylinders are adjusted simultaneously for added convenience All rolls are manufactured of high quality alloy steel and hardened to HRC 55°. Ruggedly constructed for precise and smooth operation as well as long service life. Top roll can be swiveled to facilitate removal of the finished workpiece Foot switch provides forward and backward motion control, and is protected by a housing Machine power shuts off automatically, when top roll swivels out from from the end frame. NOTE: Bigger Model R-0840H (4.0mm x 2540mm) and R-1020H (2.0mm x 3050mm) are available on request


Stock NumberR-0465H
Mild Steel Capacity6.5mm x 1300mm
Roll Diameter150mm (6")
Hydraulic Powered Pinch adjustmentStandard
Motor3 HP
Roll Speed2.2 m/min
Shipping Crate Size99" x 44" x 59" (2500 x 1100 x 1500mm)
Shipping Weight3,748 lbs. (1,700 kgs)
