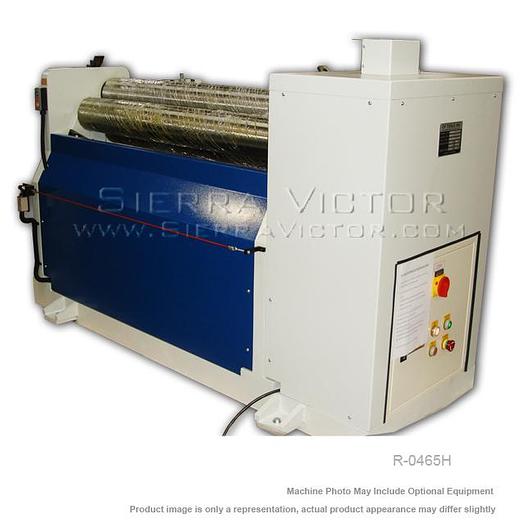

BIRMINGHAM Hydraulic Plate Bending Roll R-0440H

BIRMINGHAM Hydraulic Plate Bending Roll R-0440H

$12,000

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer BIRMINGHAM Hydraulic Plate Bending Roll R-0440H Three rolls are driven by hydraulic power Pinch roll cylinders are adjusted simultaneously for added convenience All rolls are manufactured of high quality alloy steel and hardened to HRC 55°. Ruggedly constructed for precise and smooth operation as well as long service life. Top roll can be swivelled to facilitate removal of the finished workpiece Foot switch provides forward and backward motion control, and is protected by a housing Machine power shuts off automatically, when top roll swivels out from from the end frame. NOTE: Bigger Model R-0840H (4.0mm x 2540mm) and R-1020H (2.0mm x 3050mm) are available on request ITEM: 4' x 4mm Hydraulic Plate Bending Roll MANUFACTURER: BIRMINGHAM MODEL: R-0440H

Specifications

ManufacturerBirmingham
ModelR-0440H
ConditionNew
Stock NumberR-0440H
Mild Steel Capacity4.0mm x 1300mm
Roll Diameter120mm (4.72")
Hydraulic Powered Pinch adjustmentStandard
Motor2 HP
Roll Speed2.6 m/min
Shipping Crate Size99" x 40" x 57" (2500 x 1000 x 1450mm)
Shipping Weight2,866 lbs. (1,300 kgs)
