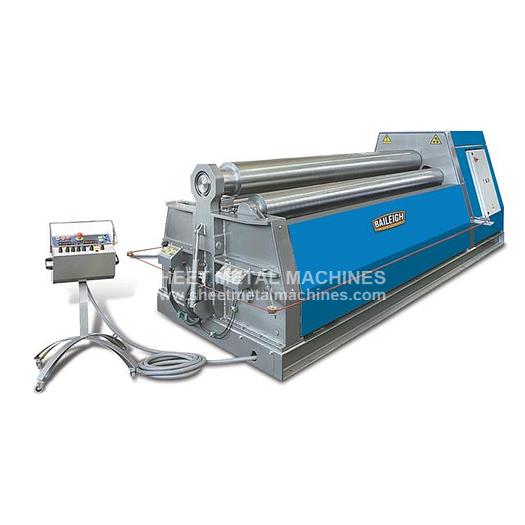

BAILEIGH Four Roll Plate Bending Machine PR-10500-4

BAILEIGH Four Roll Plate Bending Machine PR-10500-4
Contact us for price
Description
Please note: many products ship straight from manufacturer BAILEIGH Four Roll Plate Bending Machine PR-10500-4 The PR-10500-4 four roll plate bending machine has been refined over the years through extensive research and development and is considered one of the finest plate rolling machines available in the market. A 4 roll machine is the easiest, quickest, rolling machine to operate thanks to its ability to pinch the plate between the 2 central driven rolls, pre-bend the leading edge, and rolling the body of the part along with the trailing edge all in one direction and in one pass. There is no chance to lose the position of the plate due to being pinched at all times during the rolling cycle. The 2 central driven rolls on the PR-10500-4 are rotated by hydraulic motors and high efficiency planetary gearboxes coupled directly to the rolls. This hydraulic gearbox is driven by a large 10hp motor that operates on 480volt three phase power. 1/2" mild steel capacity 120" length 4 forming rolls 2 driven rolls Hydraulically driven Moveable console with DRO Hydraulic system for helping to remove material Epicycloidal gear boxes Hardened and polished rolls Conical bending system Torsion bars for perfect parallelism Planetary movement of side rolls ITEM: 122" x .55" Four Roll Plate Bending Machine MANUFACTURER: BAILEIGH MODEL: PR-10500-4
Specifications
Manufacturer | Baileigh Industrial |
Model | PR-10500-4 |
Condition | New |
Stock Number | PR-10500-4 |
Rolling Cap. (Mild Steel) | .55" |
Forming Width | 122" |
Number of Rolls | 4 |
Driven Rolls | 2 |
Top Roll Dia. | 11.4" |
Bottom Roll Dia. | 10.6" |
Slide Roll Dia. | 8.2" |
Roll Adjustment | Hydraulic |
Programming | Manual |
Roll Speed | 16 fpm. (5 mpm) |
Upper Roll Dia. | 8.662" |
Roll Adjustment Back | Hydraulic |
Side Roll Dia | 7" |
Minimum Forming Dia | 13" |
Motor | 10 HP |
Power | 480V / 3-phase |
Shipping Dimensions (L / W / H) | 176" x 58" x 39" |
Shipping Weight | 17,600 lbs. |
