BAILEIGH Plate Roll PR-609

BAILEIGH Plate Roll PR-609


orCall 386-304-3720

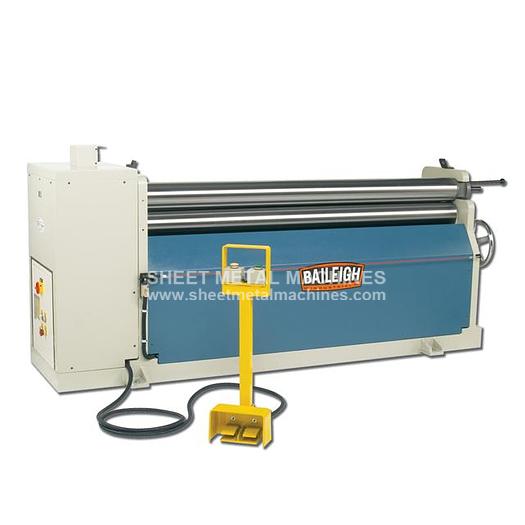

Please note: many products ship straight from manufacturer BAILEIGH 6' x 9 ga. Plate Roll PR-609 Sometimes you need just a little more than 4’ roll forming material. This is where the PR-609 shines. The PR-609 sheet metal roller has a maximum 6' forming width, which can roll up to 9 gauge mild sheet steel. All functions of this machine are hydraulically controlled for increased durability, reliability and efficiency. The industrial grade hydraulic system is run off of a 3 hp 220 volt three phase motor. This is more than enough to handle the 9 gauge capacity all day long. The back roll on the PR-609 sheet metal roller is also controlled by the hydraulic system and has a digital position indicator, so the operator knows exactly where the roll is at all times. The PR-609 is built to last like all Baileigh Industrial sheet metal rollers. It has a fully integrated plate steel frame. This setup keeps the forming rolls perfectly in alignment during the bending process. The PR-609’s top roll has a very simple release mechanism to release work that has been wrapped around the top roll. The PR-609 also has a foot pedestal to control some bending functions; forward, reverse, up, and down. For operator safety we have included dual emergency stop cables that are located on both the back and front of the machine.


ManufacturerBaileigh Industrial
Stock NumberPR-609
Forming Width72"
Roll Speed4.67 rpm.
Upper Roll Dia.5.91"
Roll Adjustment BackHydraulic
Minimum Forming Dia8.86"
Capacity (Mild Steel)9 ga. (.150")
Motor3 HP
Power220V / 3-phase
Shipping Dimensions (L / W / H)114" x 32" x 52"
Shipping Weight5,610 lbs
