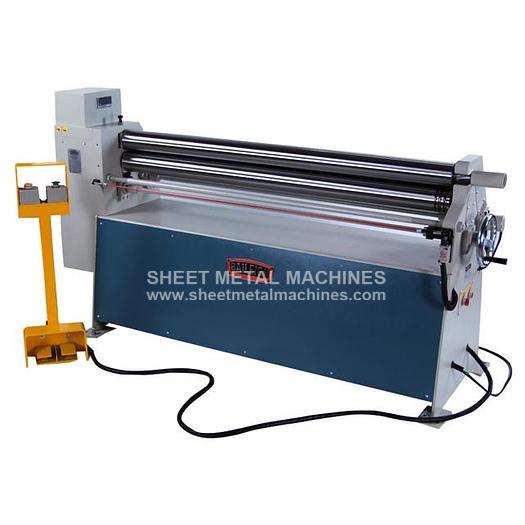

Please note: many products ship straight from manufacturer BAILEIGH 5' x 14 ga Plate Roller PR-514 Baileigh Industrial sheet metal equipment has always offered great value in its line of machinery, and the PR-514 plate forming machine is no exception. The PR-514 is the perfect plate roll for small and medium rolling applications. This plate forming machine has a useful width of 5' and has a capacity of 14 gauge mild steel sheet metal. The PR-514 has a 2 HP 220 volt single phase motor that transfers power directly to the driven rolls. A second hydraulic motor controls the movement of the back roll. The operator controls all movements on the PR-514 via a remote pedestal. This control pedestal has foot pedal controls, and houses the buttons for advancing or retracting the back roll position. Back roll position can be monitored on the digital readout that is position at the head of the machine so no matter where you are operating the PR-514, the operator has a good line of sight to it.

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



ManufacturerBaileigh Industrial
Stock NumberPR-514
Forming Width60"
Roll Speed6 rpm.
Upper Roll Dia.3.50"
Roll Adjustment BackHydraulic
Minimum Forming Dia5.25"
Motor2 HP
Wire GroovesYes
Capacity (Mild Steel)14 ga. (.075")
Power220V / 1-phase
Shipping Dimensions (L / W / H)89" x 29" x 56"
Shipping Weight1,243 lbs
