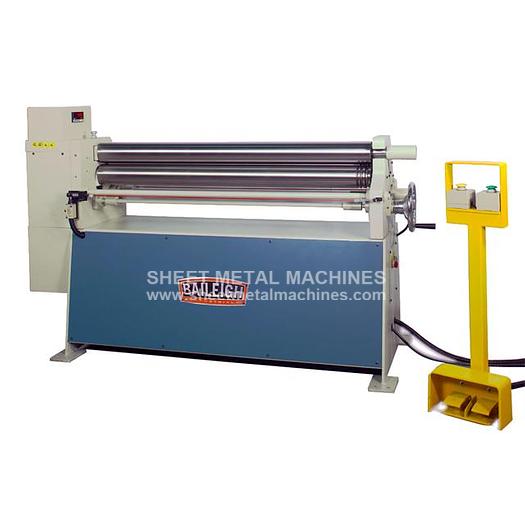

BAILEIGH Plate Roll PR-413

BAILEIGH Plate Roll PR-413


orCall 386-304-3720


Please note: many products ship straight from manufacturer BAILEIGH 4' x 13 ga Plate Roll PR-413 Do you currently have a slip roll but are constantly being bogged down when you need to form something a little thicker. That is where the PR-413 roll former comes in. This economical plate roll has the ability to handle up to 13 gauge mild steel over its whole 4’ length. This electrically driven plate roll is powered by a 2 hp 220 volt single phase motor allowing it to be used almost anywhere. Even though it is electrically driven the back roll movement is controlled by a hydraulic system. This industrial grade system allows the back roll to move up and down as well as tilt left and right when the finished product calls for coning. A digital readout is also provided to identify the position of the back roll as well. Three wire grooves are also included for those time that wire rings are need to be formed. The operation of the PR-413 roll former is all done on a convenient foot pedestal. Once the pinch is set the foot pedal contains forward and reverse pedal as well as buttons to control the up and down movement of the back roll. For safety, the PR-409 has emergency stop cable on the front and back of the machine.

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



ManufacturerBaileigh Industrial
Stock NumberPR-413
Forming Width48"
Capacity (Mild Steel)13 ga. (.090")
Upper Roll Diameter3.50"
Minimum Forming Diameter5.25"
Roll Adjustment BackHydraulic
Digital Postition ReadoutYes
Wire GroovesYes
Roll Speed6 rpm
Driven Rolls3
Motor2 hp
Power Requirement220V / 1-phase
Shipping Dimensions (L / W / H)75" x 29" x 46"
Shipping Weight1,254 lbs
