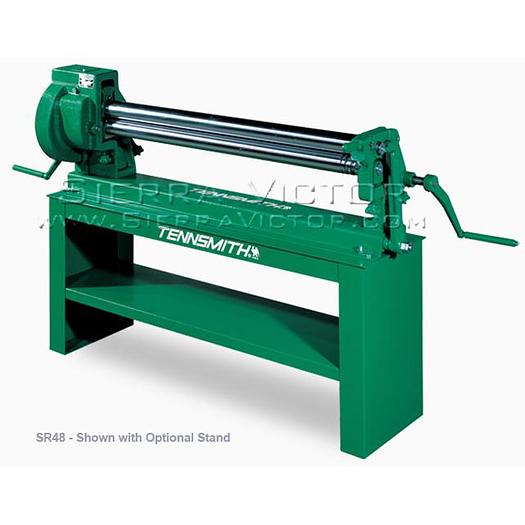

TENNSMITH Manual Slip Roll with Third Roll Drive SR48

TENNSMITH Manual Slip Roll with Third Roll Drive SR48

$3,875

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer TENNSMITH Manual Slip Roll with Third Roll Drive SR48 ITEM: 48" x 16 ga Manual Slip Roll with Third Roll Drive MANUFACTURER: TENNSMITH MODEL: SR48 MADE IN USA TENNSMITH'S slip rolls combine precision-turned, ground and polished high carbon steel rolls with heavy-duty, cast iron end frames and a welded steel base to make an accurate and durable forming tool. Convenient operating features include large roll adjusting screws, scales for speeding repeat set-up, and a front-mounted handle to lift the upper roll for material removal. Wire grooves are standard. TENNSMITH'S initial pinch slip rolls are heavy-duty, affordable, production tools for forming curved parts and tubes. Models SR48, SR324, SR336 and SR342 rolls have three gear-driven roll drives that ensure even starting and feeding of capacity materials. These same models also feature constant drive of the rolls. All three rolls continue to drive throughout their adjustment range. The SR48 gearing features a 4:1 reduction ratio for ease of operation of heavy materials. All gears are fully enclosed for safety and protection from the elements. OPTIONAL ITEMS: 86055: Floor Stand for SR48: $555

Specifications

ManufacturerTennsmith
ModelSR48
ConditionNew
Stock Number86015
Capacity - Mild Steel16 ga
Maximum Forming Length49"
Diameter of Rolls3"
Minimum Forming Radius1-1/2"
Wire Grooves3/16", 1/2", 5/8"
Gearing Ratio4:1
Dimensions77" L x 30" W x 22 " H
Shipping Weight: (lbs.)1,100
Stand Shipping Weight: (lbs.)CALL
