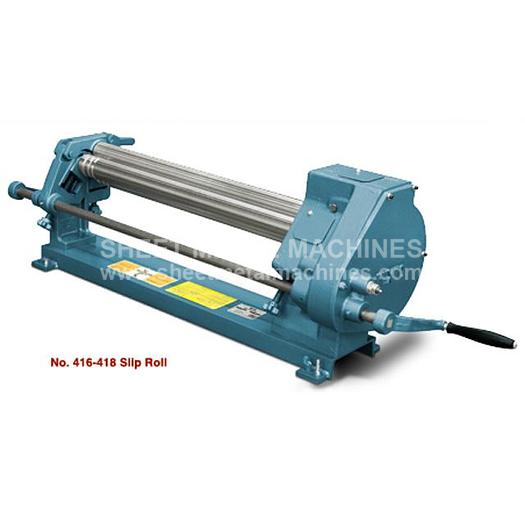

ROPER WHITNEY Slip Roll NO. 416
ROPER WHITNEY Slip Roll NO. 416
$4,120
Description
Please note: many products ship straight from manufacturer ROPER WHITNEY Slip Roll NO. 416 ITEM: 3' (36") x 16 ga. Slip Roll MANUFACTURER: ROPER WHITNEY MODEL: NO. 416 PART# 167070416 The No. 416 manual roll has 3″ precision turned and ground high carbon steel rollers. There are three wiring grooves 3/8″, 1/2″ and 5/8″. All rolls are standard with fully enclosed gear housings and all three rolls are driven. The upper roll lifts for conventional removal of the work piece. The maximum sheet length is 36″ with a thickness capacity of 14-16 gauge mild steel. MADE IN USA OPTIONAL ITEM: 239006008K - NO. 416 Heavy Duty Welded Floor Mount Stand - 200 lbs.: $619 Smooth rear roll (no grooves)
Specifications
| Manufacturer | Roper Whitney |
| Model | NO. 416 |
| Condition | New |
| Stock Number | 167070416 |
| Capacity - Mild Steel | 14 ga. |
| Max. Forming Length | 36" |
| Roll Diameter | 3" |
| Minimum Forming Radius | 1.5" |
| Gearing Ratio | 4:01 |
| Wiring Grooves | 3/8", 1/2", 5/8"(9.5, 12.5, 15.5mm) |
| Dimensions | 69" x 19" x 19" |
| Shipping Weight | 720 lbs. |
