ROPER WHITNEY Slip Roll NO. 418

ROPER WHITNEY Slip Roll NO. 418
$4,227
Description

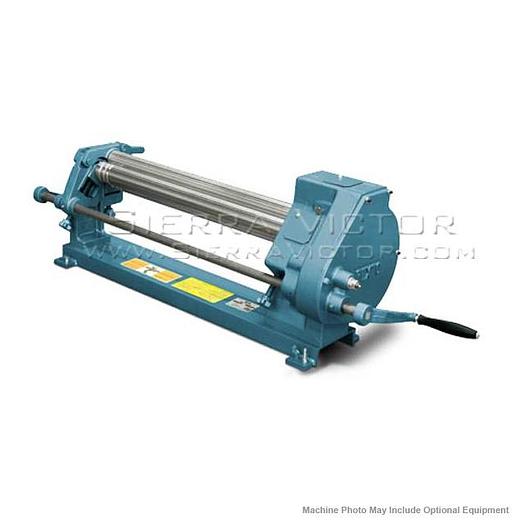

Please note: many products ship straight from manufacturer ROPER WHITNEY Slip Roll NO. 418 The No. 418 manual roll has 3″ precision turned and ground high carbon steel rollers. There are three wiring grooves 3/8″, 1/2″ and 5/8″. All rolls are standard with fully enclosed gear housings and all three rolls are driven. The upper roll lifts for conventional removal of the work piece. The maximum sheet length is 48″ with a thickness capacity of 16-18 gauge mild steel. MADE IN USA ITEM: 4' (48") x 18 ga. Slip Roll MANUFACTURER: ROPER WHITNEY MODEL: NO. 418 PART# 167070418 PART # ITEM 239006009K NO. 418 Heavy Duty Welded Floor Mount Stand - 200 lbs.: $578 — Smooth rear roll (no grooves)
Specifications
Manufacturer | Roper Whitney |
Model | NO. 418 |
Condition | New |
Stock Number | NO. 418 |
Catalog No. | 167070418 |
Capacity - Mild Steel | 16 - 18 ga |
Max. Forming Length | 48" |
Roll Diameter | 3" |
Minimum Forming Radius | 1.5" |
Gearing Ratio | 4:1 |
Wiring Grooves | 3/8", 1/2", 5/8"(9.5, 12.5, 15.5mm) |
Dimensions | 81" x 19" x 19" |
Shipping Weight | 793 lbs. |
