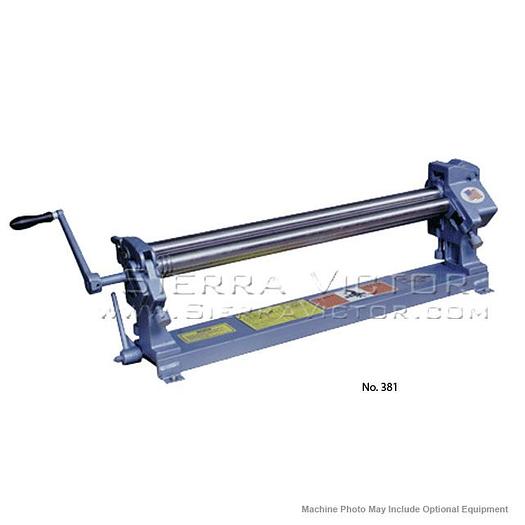

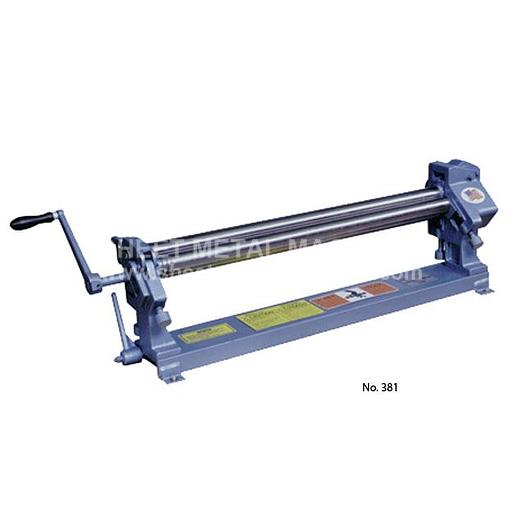

ROPER WHITNEY Slip Roll NO. 381

ROPER WHITNEY Slip Roll NO. 381

$1,386

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ROPER WHITNEY 3' (36") x 22 ga Slip Roll NO. 381

PART# 167072381 The No. 381 manual roll has 2″ precision turned and ground high carbon steel rollers. There are three wiring grooves 3/16″, 1/4″ and 5/16″. All rolls are standard with fully enclosed gear housings and all three rollers are driven. The upper roll lifts for conventional removal of the work piece. The maximum sheet length is 36″ with a thickness capacity of 22 gauge mild steel. MADE IN USA


OPTIONAL ITEMS: PART # 667002915 - NO. 381 Heavy Duty Welded Floor Mount Stand - 120 lbs.: $350

Specifications

ManufacturerRoper Whitney
ModelNO. 381
ConditionNew
Stock Number167072381
Capacity - Mild Steel ( ga. )22
Max. Forming Length36"
Roll Diameter2"
Minimum Forming Radius1"
Wiring Grooves3/16", 1/4", 5/16" (5, 6.5, 8mm)
Dimensions55" x 11" x 15"
Shipping Weight245 lbs.
