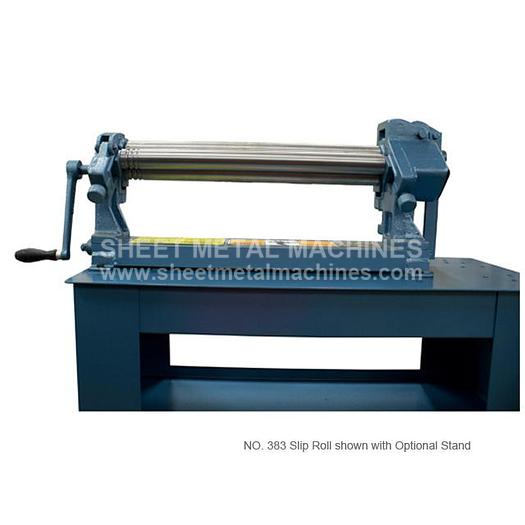

ROPER WHITNEY Slip Roll NO. 383

ROPER WHITNEY Slip Roll NO. 383

$1,065

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ROPER WHITNEY Slip Roll NO. 383 ITEM: 2' (24") x 20 ga. Slip Roll MANUFACTURER: ROPER WHITNEY MODEL: NO. 383 PART# 167072383 The No. 383 manual roll has 2″ precision turned and ground high carbon steel rollers. There are three wiring grooves 3/16″, 1/4″ and 5/16″. All rolls are standard with fully enclosed gear housings and all three rolls are driven. The upper roll lifts for conventional removal of the work piece. The maximum sheet length is 24″ with a thickness capacity of 20 gauge mild steel. MADE IN USA PART # ITEM 667002914 NO. 383 Heavy Duty Welded Floor Mount Stand - 120 lbs.: $305

Specifications

ManufacturerRoper Whitney
ModelNO. 383
ConditionNew
Stock NumberNO. 383
Catalog No.167072383
Capacity - Mild Steel ( ga. )20
Max. Forming Length24"
Roll Diameter2"
Minimum Forming Radius1"
Wiring Grooves3/16", 1/4", 5/16" (5, 6.5, 8mm)
Dimensions43" x 11" x 15"
Shipping Weight188 lbs.
