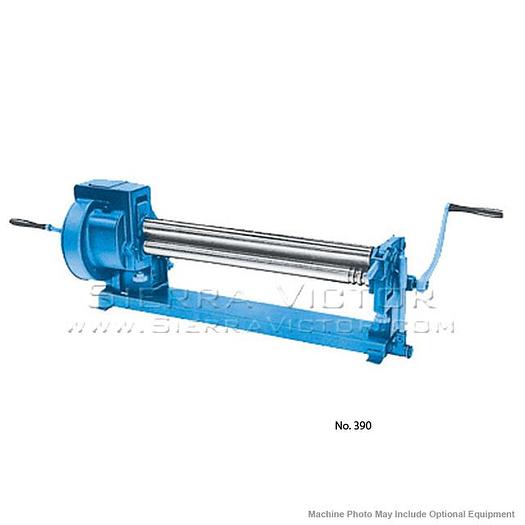

ROPER WHITNEY Slip Roll NO. 390

ROPER WHITNEY Slip Roll NO. 390
$4,189
Description
Please note: many products ship straight from manufacturer ROPER WHITNEY Slip Roll NO. 390 ITEM: 36" x 16 ga. Slip Roll MANUFACTURER: ROPER WHITNEY MODEL: NO. 390 PART# 167070390 The No. 390 manual roll has 2-1/2" precision turned and ground high carbon steel rollers. There are four wiring grooves 1/4", 9/32", 5/16" and 3/8". All rolls are standard wih fully enclosed gear housings and all three rolls are driven. The upper roll lifts for conventional removal of the work piece. The maximum sheet length is 36" with a thickness capacity of 16-18 gauge mild steel. MADE IN USA PART # ITEM 239006008K NO. 390 Heavy Duty Welded Floor Mount Stand - 180 lbs.: $578
Specifications
Manufacturer | Roper Whitney |
Model | NO. 390 |
Condition | New |
Stock Number | NO. 390 |
Catalog No. | 167070390 |
Capacity - Mild Steel | 16-18 ga |
Max. Forming Length | 36" |
Roll Diameter | 2-1/2" |
Minimum Forming Radius | 1.25" |
Gearing Ratio | 2.4:1 |
Wiring Grooves | 1/4", 9/32", 5/16", 3/8" |
Dimensions | 62" x 18" x 17" |
Shipping Weight | 457 lbs. |
